SC65D02C40

8-BIT MCU FOR REMOTE CONTROLLER

SC65D02C40 Features

* Built-in hundreds of different code formats for remote controllers and it can control many household applications.

* Single chip which composes the system only need a few components.

* CMOS technology, operating voltage is 2.0V-3.6V and the quiescent power dissipation is less than 2uA

SC65D02C40 General Description

SC65D02C40 is a multifunction infrared remote controller integrating many electrical appliances and many code formats (do not support LCD display). This chip is based on 8-bit MCU SC65X designed by Silan company. It provides built-in 8K program memory and 32K data memory. Its assistant PC design sof.

SC65D02C40 Datasheet (307.05 KB)

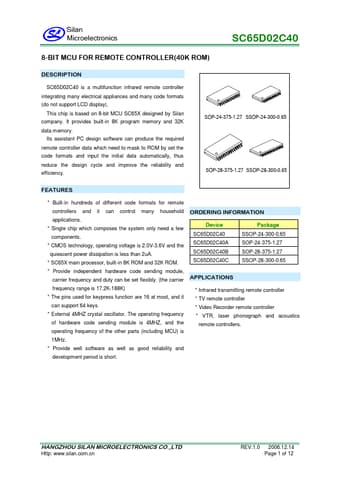

Preview of SC65D02C40 PDF

Datasheet Details

Part number:

SC65D02C40

Manufacturer:

Silan Microelectronics

File Size:

307.05 KB

Description:

8-bit mcu for remote controller.
