SC7312 - 4CH OUTPUT STEREO AUDIO PROCESSOR

Datasheet Summary

Description

The SC7312 is a volume, tone (bass and treble), balance (left/ right) and fader(front/rear) processor for quality audio applications in car radio and Hi-Fi systems.

Selectable input gain and external loudness function are provided.

Control is accomplished by serial I2C bus microprocessor interface.

Features

  • Input multiplexer: --4 stereo inputs --Selectable input gain for optimal adaptation to different sources.
  • Four speaker attenuators: --4 independent speakers control in 1.25dB steps for balance and fader facilities --Independent mute function.
  • All functions programmable via serial I 2C Bus.
  • Loudness function.
  • Volume control in 1.25dB steps.
  • Treble and bass control.
  • Input and output for external equalizer or noise reduction system.

📥 Download Datasheet

Datasheet preview – SC7312

Datasheet Details

Part number SC7312
Manufacturer Silan Microelectronics
File Size 286.88 KB
Description 4CH OUTPUT STEREO AUDIO PROCESSOR
Datasheet download datasheet SC7312 Datasheet
Additional preview pages of the SC7312 datasheet.

📁 Similar Datasheet

  • SC7318 - LDO linear regulator (ChipSourceTek)
  • SC7325 - LDO linear regulator (ChipSourceTek)
  • SC7327 - LDO linear regulator (ChipSourceTek)
  • SC7330 - LDO linear regulator (ChipSourceTek)
  • SC7333 - LDO linear regulator (ChipSourceTek)
  • SC7336 - LDO linear regulator (ChipSourceTek)
  • SC7350 - LDO linear regulator (ChipSourceTek)
  • SC70-5 - Surface mounted / 5 pin package Package outline (Zetex Semiconductors)
  • SC70-6 - Surface mounted / 5 pin package Package outline (Zetex Semiconductors)
  • SC701 - SILICON GATE ENHANCEMENT MODE RF POWER VDMOS TRANSISTOR (Polyfet RF Devices)
Other Datasheets by Silan Microelectronics
  • SC7312S - 4CH OUTPUT STEREO AUDIO PROCESSOR
  • SC7313 - 4-CH OUTPUT STEREO AUDIO PROCESSOR
  • SC7313S - 4-CH OUTPUT STEREO AUDIO PROCESSOR
  • SC7314 - 4CH OUTPUT STEREO AUDIO PROCESSOR
  • SC7314D - 4CH OUTPUT STEREO AUDIO PROCESSOR
  • SC7314S - 4CH OUTPUT STEREO AUDIO PROCESSOR
  • SC7315 - 2CH OUTPUT STEREO AUDIO PROCESSOR
  • SC7315S - 2CH OUTPUT STEREO AUDIO PROCESSOR

Full PDF Text Transcription

Click to expand full text

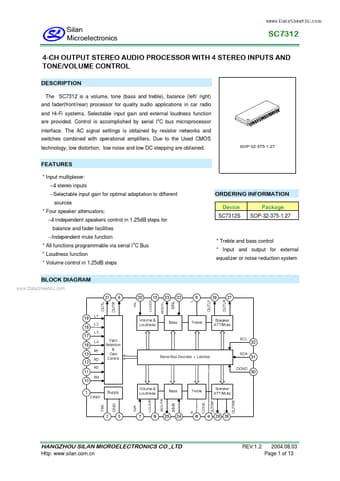

SC7312 4-CH OUTPUT STEREO AUDIO PROCESSOR WITH 4 STEREO INPUTS AND TONE/VOLUME CONTROL DESCRIPTION The SC7312 is a volume, tone (bass and treble), balance (left/ right) and fader(front/rear) processor for quality audio applications in car radio and Hi-Fi systems. Selectable input gain and external loudness function are provided. Control is accomplished by serial I2C bus microprocessor interface. The AC signal settings is obtained by resistor networks and switches combined with operational amplifiers. Due to the Used CMOS technology, low distortion, low noise and low DC stepping are obtained. SOP-32-375-1.27 FEATURES * Input multiplexer: --4 stereo inputs --Selectable input gain for optimal adaptation to different sources * Four speaker attenuators: --4 independent speakers control in 1.
