SC9102C - T/P SWITCHABLE DIALER WITH REDIA FUNCTION

Product Overview

Silan Microelectronics

Datasheet Details

Part number	SC9102C
Manufacturer	Silan Microelectronics
File Size	408.95 KB
Description	T/P SWITCHABLE DIALER WITH REDIA FUNCTION
Datasheet	SC9102C Datasheet

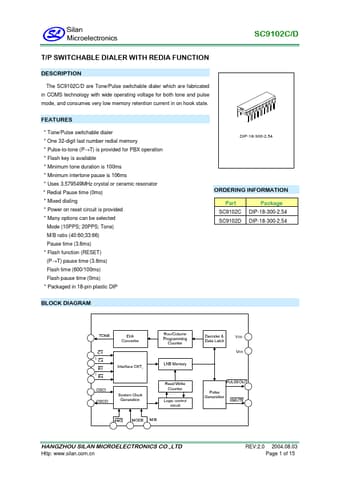

Additional preview pages of the SC9102C datasheet.

Product details

Description

The SC9102C/D are Tone/Pulse switchable dialer which are fabricated in COMS technology with wide operating voltage for both tone and pulse mode, and consumes very low memory retention current in on hook state.

Features

Tone/Pulse switchable dialer.
One 32-digit last number redial memory.
Pulse-to-tone (P→T) is provided for PBX operation.
Flash key is available.
Minimum tone duration is 100ms.
Minimum intertone pause is 106ms.
Uses 3.579549MHz crystal or ceramic resonator.
Redial Pause time (0ms).
Mixed dialing.
Power on reset circuit is provided.
Many options can be selected Mode (10PPS; 20PPS; Tone) M/B ratio (40:60;33:66) Pause time (3.6ms).
Flash.
