SU0524B6GTR - 4-CHANNEL LOW CAPACITANCE ESD PROTECTION DIODES ARRAY

This page provides the datasheet information for the SU0524B6GTR, a member of the SU0524 4-CHANNEL LOW CAPACITANCE ESD PROTECTION DIODES ARRAY family.

Description

The SU0524 is a 4-channel ultra low capacitance rail clamp ESD protection diodes array.

Each channel consists of a pair of ESD diodes that steer positive or negative ESD current to either the positive or negative rail.

Features

  • 4 channels of ESD protection;.
  • Provides ESD protection to IEC61000-4-2 level 4 - ±17kV air discharge - ±12kV contact discharge;.
  • Channel I/O to GND capacitance: 0.9pF(Max).
  • Channel I/O to I/O capacitance: 0.45pF(Max).
  • Low clamping voltage;.
  • 5V low operating voltage;.
  • Improved zener structure;.
  • Optimized package for easy high speed data lines PCB layout;.
  • RoHS compliant.

📥 Download Datasheet

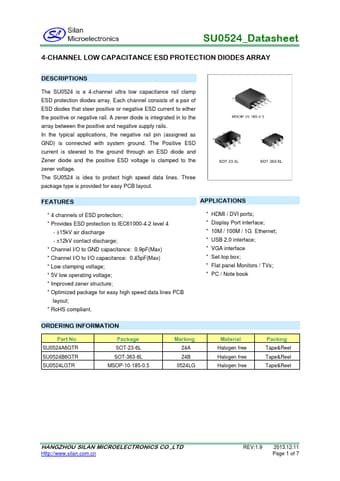

Datasheet preview – SU0524B6GTR
