SVF7N60CMJ

600V N-CHANNEL MOSFET

SVF7N60CMJ Features

* 7A, 600V, RDS(on)（typ）=0.96@VGS=10V

* Low gate charge

* Low Crss

* Fast switching

* Improved dv/dt capability NOMENCLATURE ORDERING INFORMATION Part No. SVF7N60CF SVF7N60CS SVF7N60CSTR SVF7N60CK SVF7N60CMJ SVF7N60CD SVF7N60CDTR SVF7N60CT Package TO-220F-3L TO-263-2L TO-263-

SVF7N60CMJ General Description

SVF7N60CF/S/K/MJ/D/T is an N-channel enhancement mode power MOS field effect transistor which is produced using Silan proprietary F-CellTM high-voltage planar VDMOS technology. The improved process and cell structure have been especially tailored to minimize on-state resistance, provide superior swi.

SVF7N60CMJ Datasheet (952.04 KB)

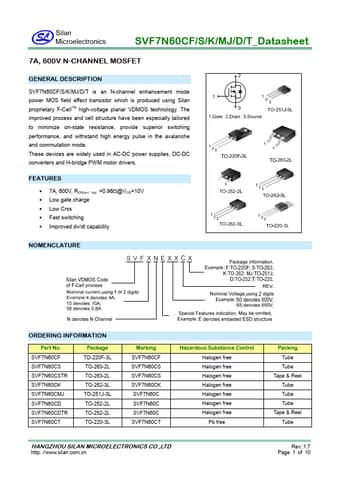

Preview of SVF7N60CMJ PDF

Datasheet Details

Part number:

SVF7N60CMJ

Manufacturer:

Silan Microelectronics

File Size:

952.04 KB

Description:

600v n-channel mosfet.
