SLG59M1720V, 2.0A Integrated Power Switch

SLG59M1720V An Ultra-small 1.4 mm2, 18 mΩ, 2.0 A Integrated Power Switch with Discharge General .
The SLG59M1720V is a high performance 18 mΩ, 2.

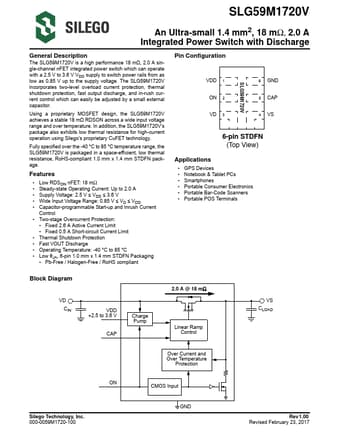

datasheet Preview Page 1 from Datasheet4u.com

SLG59M1720V-Silego.pdf

SLG59M1720V Datasheet Preview — Preview of SLG59M1720V PDF

Datasheet Details

Part number:

SLG59M1720V

Manufacturer:

Silego

File Size:

236.18 KB

Description:

2.0A Integrated Power Switch

Features

* Low RDSON nFET: 18 mΩ
* Steady-state Operating Current: Up to 2.0 A
* Supply Voltage: 2.5 V ≤ VDD ≤ 3.6 V
* Wide Input Voltage Range: 0.85 V ≤ VD ≤ VDD
* Capacitor-programmable Start-up and Inrush Current Control
* Two-stage Overcurrent Protection:

Applications

* GPS Devices
* Notebook & Tablet PCs
* Smartphones
* Portable Consumer Electronics
* Portable Bar-Code Scanners
* Portable POS Terminals Block Diagram VD CIN VDD +2.5 to 3.6 V CAP Charge Pump 2.0 A @ 18 mΩ Linear Ramp Control VS CLOAD Over Curr
