SY50133

Flyback Regulator

SY50133 Features

* Very tight PSR CC/CV regulation over entire operating range

* QR-mode operation for high efficiency

* PWM/PFM control for higher average efficiency

* Internal CC/CV loop compensation

* The self-adaption compensation for better stability

* Fast dynami

SY50133 General Description

SY50133 is a single stage Flyback controller targeting at Constant Current/Constant Voltage (CC/CV) applications. It integrates a 600V MOSFET to decrease physical volume. Both the output current and voltage are sensed by primary side signal process. SY50133 operates quasi-resonant mode and adaptive.

SY50133 Datasheet (2.00 MB)

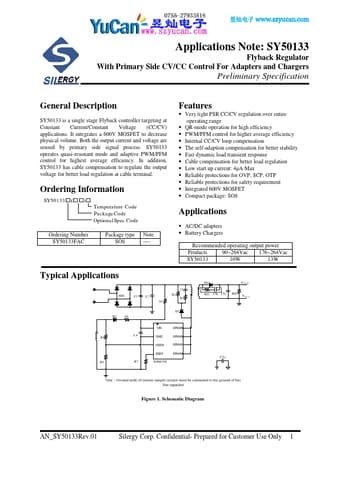

Preview of SY50133 PDF

Datasheet Details

Part number:

SY50133

Manufacturer:

Silergy

File Size:

2.00 MB

Description:

Flyback regulator.
www.szyucan.com Applications Note: SY50133 Flyback Regulator With Primary Side CV/CC Control For Adapters and Chargers Preliminary Specification Gen.
