SY7301A - 40V High Current Boost LED Driver

Description

SY7301A develops a step-up DC/DC converter that delivers an accurate constant current for driving LEDs.

Operating at a fixed switching frequency of 1MHz allows the device to be used with small value external ceramic capacitors and inductor.

Features

  • Input voltage range: 2.8 to 40V.
  • Switch current limit:2A.
  • Drives LED strings up to 40V.
  • 1MHz fixed frequency minimizes the external components.
  • 200Hz~1MHz dimming frequency for EN/PWM pin.
  • Internal softstart limits the inrush current.
  • Open LED over voltage protection.
  • RoHS Compliant and Halogen F ee.
  • Compact package: TSOT23 -6/DFN3X3-10.

📥 Download Datasheet

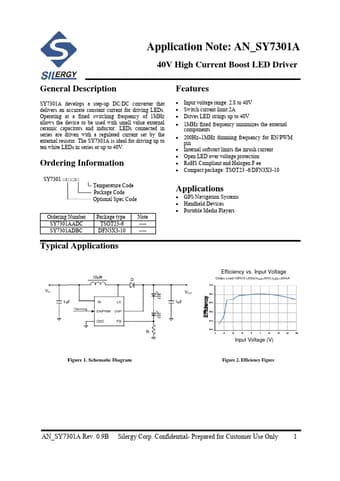

Datasheet preview – SY7301A

Datasheet Details

Part number SY7301A
Manufacturer Silergy
File Size 1.43 MB
Description 40V High Current Boost LED Driver
Datasheet download datasheet SY7301A Datasheet
Additional preview pages of the SY7301A datasheet.

📁 Similar Datasheet

  • SY7320 - 2 position single (SMC)
  • SY733021U - 2.5/3.3V 1-to-1 Differential to LVCMOS/LVTTL Translator (Micrel Semiconductor)
  • SY7060 - Flexibles Montagesystem (SMC)
  • SY7100 - Bluetooth headset charging case wireless charging solution (TPS)
  • SY7120 - 5 Port Solenoid Valves (SMC)
  • SY7140 - 5 Port Solenoid Valves (SMC)
  • SY7220 - 2 position single (SMC)
  • SY7420 - 2 position single (SMC)
  • SY74PT - Photo Transistors (Shian Yih Electronic)
  • SY7520 - 2 position single (SMC)
Other Datasheets by Silergy
  • SY7304 - 1MHz Step Up Regulator
  • SY7065 - 1.8V Minimum Input and 5.5V Maximum Output 5A Peak Current Synchronous Boost
  • SY7065A - 1.8V Minimum Input and 5.5V Maximum Output 5A Peak Current Synchronous Boost
  • SY7066 - 1.8V Minimum Input and 5.5V Maximum Output 6A Peak Current Synchronous Boost
  • SY7069 - 1MHz Synchronous Boost
  • SY7069B - 1MHz Synchronous Boost
  • SY7070 - 100mA Maximum Output Current Synchronous Boost
  • SY7070A - 100mA Maximum Output Current Synchronous Boost

Full PDF Text Transcription

Click to expand full text
Application Note: AN_SY7301A 40V High Current Boost LED Driver General Description SY7301A develops a step-up DC/DC converter that delivers an accurate constant current for driving LEDs. Operating at a fixed switching frequency of 1MHz allows the device to be used with small value external ceramic capacitors and inductor. LEDs connected in series are driven with a regulated current set by the external resistor. The SY7301A is ideal for driving up to ten white LEDs in series or up to 40V. Ordering Information SY7301 □(□□)□ Temperature Code Package Code Optional Spec Code Ordering Number Package type Note SY7301AADC TSOT23-6 ---- SY7301ADBC DFN3X3-10 ---- Typical Applications Features • Input voltage range: 2.
