SY8023 Dual 3A Synchronous Step Down Regulator

The SY8023 is a high-efficiency 1MHz synchronous step-down DC-DC regulator IC capable of delivering up to 3A output currents. The SY8023 operates over a wide input voltage range from 3V to 5.5V and integrate main switch and synchronous switch with very low RDS(ON) to minimize the conduction loss. Lo.

SY8023 Features

* Low RDS(ON) for internal switches (top/bottom): 110mΩ /80mΩ

* 3-5.5V input voltage range

* 1MHz switching frequency minimizes the external components

* Internal softstart limits the inrush current

* 100% dropout operation

* RoHS Compliant and Halogen

SY8023 Datasheet (404.54 KB)

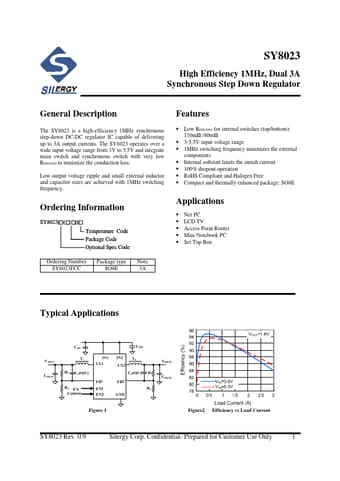

SY8023 Datasheet Preview — Preview of SY8023 PDF

Datasheet Details

Part number:

SY8023

Manufacturer:

Silergy

File Size:

404.54 KB

Description:

Dual 3a synchronous step down regulator.
