SY8113B Datasheet, regulator equivalent, Silergy

PDF File Details

Part number: SY8113B

Manufacturer: Silergy

File Size: 3.62MB

Download: 📄 Datasheet

Description: Synchronous Step Down Regulator

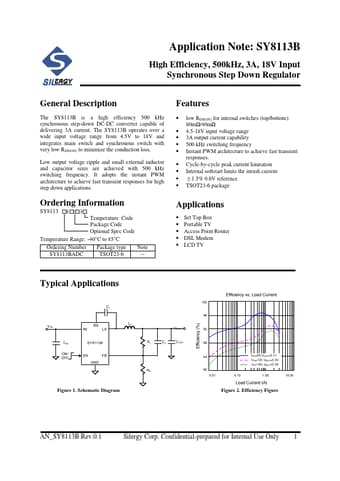

Datasheet Preview: SY8113B 📥 Download PDF (3.62MB)

SY8113B Features and benefits


* low RDS(ON) for internal switches (top/bottom): 80mΩ/40mΩ
* 4.5-18V input voltage range
* 3A output current capability
* 500 kHz switching frequency

SY8113B Application

Ordering Information SY8113 □(□□)□ Temperature Code Package Code Optional Spec Code Temperature Range: -40°C to 85°C .

SY8113B Description

The SY8113B is a high efficiency 500 kHz synchronous step-down DC-DC converter capable of delivering 3A current. The SY8113B operates over a wide input voltage range from 4.5V to 18V and integrates main switch and synchronous switch with very low RD.

Image gallery

Page 2 of SY8113B Page 3 of SY8113B
