SY8113B1 Datasheet PDF (Synchronous Step Down Regulator)

SY8113B1 - Synchronous Step Down Regulator

Description

The SY8113B1 is a high efficiency, 1.4MHz synchronous step-down DC/DC regulator capable of delivering up to 3A load current.

It can operate over a wide input voltage range from 4.5V to 18V and integrate main switch and synchronous switch with very low RDS(ON) to minimize the conduction loss.

Features

Low RDS(ON) for Internal Switches (Top/Bottom): 80mΩ/40mΩ.
4.5~18V Input Voltage Range.
3A Output Current Capability.
1.4MHz Switching Frequency Minimize the External Components.
Stable with 10µF COUT and 0.68µH Inductor.
Instant PWM Architecture to Achieve Fast Transient Responses.
Internal Soft-start Limits the Inrush Current.
Forced PWM Operation.
Cycle-by-cycle Peak/Valley Current Limitation.
Hic-cup Mode Output Short Circuit Protection.

Datasheet Details

Part number	SY8113B1
Manufacturer	Silergy
File Size	728.96 KB
Description	Synchronous Step Down Regulator
Datasheet	SY8113B1 Datasheet

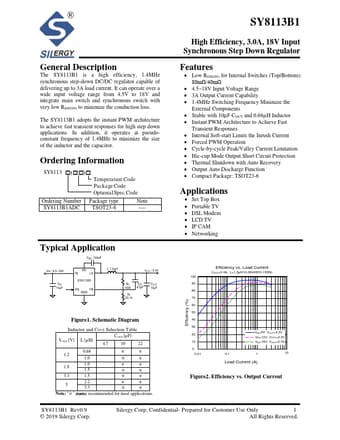

Additional preview pages of the SY8113B1 datasheet.

📁 Similar Datasheet

SY8022 - Dual 2.5A/2A Synchronous Step Down Regulator (SANY)

SY8022L - Dual 2.5A/2A Synchronous Step Down Regulator (SANY)

SY8201CABC - 30V 1A 1.4MHz Synchronous Step-Down Regulator (SUNGOOD)

SY8205 - N-Channel MOSFET (SANY)

SY826 - Special chips for e-cigarettes (AMICRO)

SY84113BU - Low Power 2.5V 1.25Gbps Limiting Post Amplifier (Micrel Semiconductor)

SY84402L - 4.25Gbps VCSEL Driver (Micrel Semiconductor)

SY84403BL - Ultra Small 3.3V 4.25Gbps CML Low-Power Limiting Post Amplifier (Micrel Semiconductor)

SY84782U - Low Power 2.5V 1.25Gbps FP/DFB Laser Diode Driver (Micrel Semiconductor)

SY8601 - Linear Li-Ion Battery Charger (TPS)

Full PDF Text Transcription

Click to expand full text

SY8113B1 General Description The SY8113B1 is a high efficiency, 1.4MHz synchronous step-down DC/DC regulator capable of delivering up to 3A load current. It can operate over a wide input voltage range from 4.5V to 18V and integrate main switch and synchronous switch with very low RDS(ON) to minimize the conduction loss. The SY8113B1 adopts the instant PWM architecture to achieve fast transient responses for high step down applications. In addition, it operates at pseudoconstant frequency of 1.4MHz to minimize the size of the inductor and the capacitor. Ordering Information SY8113 □(□□)□ Tempera ture Code Pa cka ge Code Optional Spec Code Ordering Number Package type Note SY8113B1ADC TSOT23-6 ---- Typical Application CBS 100nF VIN : 4.
