SY8113D

Synchronous Step Down Regulator

SY8113D Features

* Low RDS(ON) for Internal Switches (Top/Bottom): 80mΩ/40mΩ

* 4.5-18V Input Voltage Range

* 3A Output Current Capability

* 500 kHz Switching Frequency

* Instant PWM Architecture to Achieve Fast Transient Responses

* Cycle-by-cycle Current Limitation

* Hiccup Mode Short Ci

SY8113D General Description

The SY8113D is a high efficiency 500kHz synchronous step-down DC/DC converter capable of delivering 3A current. The SY8113D operates over a wide input voltage range from 4.5V to 18V and integrates main switch and synchronous switch with very low RDS(ON) to minimize the conduction loss. Low output .

SY8113D Datasheet (866.37 KB)

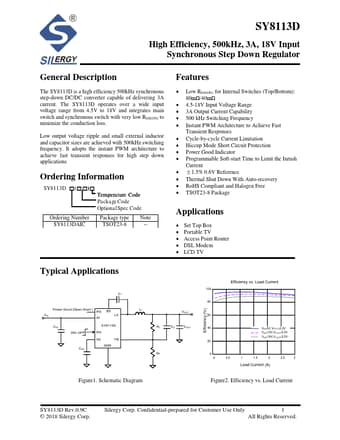

Preview of SY8113D PDF

Datasheet Details

Part number:

SY8113D

Manufacturer:

Silergy

File Size:

866.37 KB

Description:

Synchronous step down regulator.
