SY8892E - 2A Synchronous Step Down Regulator

Silergy

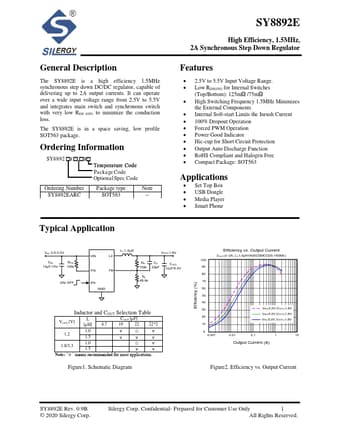

SY8892E Datasheet Preview — Preview of SY8892E PDF

Datasheet Details

Part number	SY8892E
Manufacturer	Silergy
File Size	1.05 MB
Description	2A Synchronous Step Down Regulator
Datasheet	SY8892E-Silergy.pdf

SY8892E Product details

Description

The SY8892E is a high efficiency 1.5MHz synchronous step down DC/DC regulator, capable of delivering up to 2A output currents. ( ) Temperature Code Pa cka ge Code Optional Spec Code Ordering Number P

Features

2.5V to 5.5V Input Voltage Range.
Low RDS(ON) for Internal Switches (Top/Bottom): 125mΩ /75mΩ.
High Switching Frequency 1.5MHz Minimizes the External Components.
Internal Soft-start Limits the Inrush Current.
100% Dropout Operation.
Forced PWM Operation.
Power Good Indicator.
Hic-cup for Short Circuit Protection.
Output Auto Discharge Function.
RoHS Compliant and Halogen Free.
Compact Package: SOT563.
