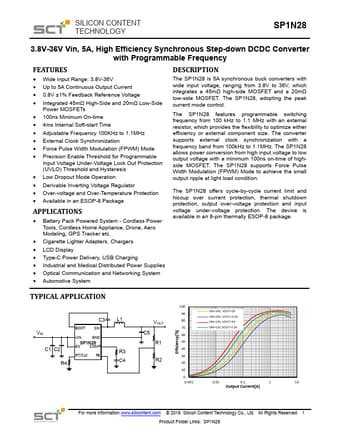

FEATURES - Wide Input Range: 3.8V-36V - Up to 5A Continuous Output Current - 0.8V ±1% Feedback Reference Voltage - Integrated 45mΩ High-Side and 20mΩ Low-Side Power MOSFETs - 100ns Minimum On-time - 4ms Internal Soft-start Time - Adjustable Frequency 100KHz to 1.1MHz - External Clock Synchronization - Force Pulse Width Modulation (FPWM) Mode - Precision Enable Threshold for Programmable Input Voltage Under-Voltage Lock Out Protection (UVLO) Threshold and Hysteresis - Low Dropout Mode Operation - Derivable Inverting Voltage Regulator - Over-voltage and Over-Temperature Protection - Available in an ESOP-8 Package APPLICATIONS - Battery Pack Powered System - Cordless Power Tools, Cordless Home Appliance, Drone, Aero Modeling, GPS Tracker etc. - Cigarette Lighter Adapters, Chargers - LCD Display - Type-C Power Delivery, USB Charging - Industrial and Medical Distributed Power Supplies - Optical munication and Networking System - Automotive System DESCRIPTION The SP1N28 is 5A synchronous buck converters with wide input voltage, ranging from 3.8V to 36V, which integrates a 45mΩ high-side MOSFET and a 20mΩ low-side MOSFET. The SP1N28, adopting the peak current mode control. The SP1N28 features programmable switching frequency from 100 k Hz to 1.1 MHz with an external resistor, which provides the flexibility to optimize either efficiency or external ponent size. The converter supports external clock synchronization with a frequency band from 100k Hz to 1.1MHz. The SP1N28 allows power conversion from high input voltage to low output voltage with a minimum 100ns on-time of highside MOSFET. The SP1N28 supports Force Pulse Width Modulation (FPWM) Mode to achieve the small output ripple at light load condition. The SP1N28 offers cycle-by-cycle current limit and hiccup over current protection, thermal shutdown protection, output over-voltage protection and input voltage under-voltage protection. The device is available in an 8-pin thermally ESOP-8 package. TYPICAL APPLICATION C3...
