C8051F550 Datasheet - Silicon Laboratories

C8051F550 Mixed Signal ISP Flash MCU

Analog Peripherals - 12-Bit ADC Up to 200 ksps Up to 32 external single-ended inputs VREF from on-chip VREF, external pin or VDD Internal or external start of conversion source Built-in temperature sensor - Two Comparators Programmable hysteresis and response time Configurable as interrupt or reset source Low current On-Chip Debug - On-chip debug circuitry facilitates full speed, non- intrusive in-system debug (no em.

C8051F550-SiliconLaboratories.pdf

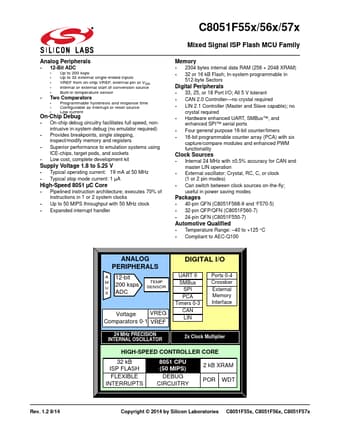

Preview of C8051F550 PDF
C8051F550 Datasheet Preview Page 2 C8051F550 Datasheet Preview Page 3

Datasheet Details

Part number:

C8051F550

Manufacturer:

Silicon Laboratories

File Size:

2.82 MB

Description:

Mixed signal isp flash mcu.
