SI4012 - CRYSTAL-LESS RF TRANSMITTER

SI4012 Description

www.DataSheet.co.kr Si4012 Si4012 C RYSTAL - LESS R F T RANSMITTER .
Silicon Laboratories’ Si4012 is a fully integrated crystal-less CMOS high-data rate RF transmitter designed for the sub-GHz ISM band.

SI4012 Features

* Frequency range
* 27
* 960 MHz Output Power Range
* 
* 13 to +10 dBm Low Power Consumption
* OOK 14.2 mA @ +10 dBm
* FSK 19.8 mA @ +10 dBm Data Rate = 0 to 100 kbaud FSK FSK and OOK modulation Power Supply = 1.8 to 3.6 V

SI4012 Applications

* Wireless MBus T1-mode Remote control Home security & alarm Personal data logging Toy control Wireless PC peripherals
* Remote meter reading Remote keyless entry Home automation Industrial control Sensor networks Health monitors

📥 Download Datasheet

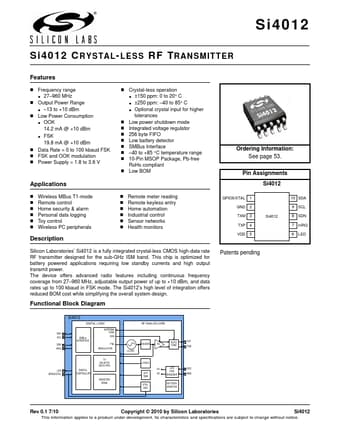

Preview of SI4012 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SI4012
Manufacturer
Silicon Laboratories
File Size
256.92 KB
Datasheet
SI4012_SiliconLaboratories.pdf
Description
CRYSTAL-LESS RF TRANSMITTER
