SI8440 - LOW-POWER QUAD-CHANNEL DIGITAL ISOLATOR

SI8440 Description

Si8440/41/42/45 LOW-POWER QUAD-CHANNEL DIGITAL ISOLATOR .
Silicon Lab's family of ultra-low-power digital isolators are CMOS devices offering substantial data rate, propagation delay, power, size, reliability.

SI8440 Features

* High-speed operation
* Up to 2500 VRMS isolation
* DC to 150 Mbps
* 60-year life at rated working
* No start-up initialization required voltage
* Wide Operating Supply Voltage:
* Precise timing (typical) 2.70
* 5.5 V
* 

SI8440 Applications

* o e
* Industrial automation systems
* Hybrid electric vehicles ec D
* Isolated switch mode supplies
* Isolated ADC, DAC
* Motor control
* Power inverters
* Communications systems R w Safety Regulatory Approvals t e
* UL 1577 recognized o N
* Up to 2500 VRMS fo

📥 Download Datasheet

Preview of SI8440 PDF

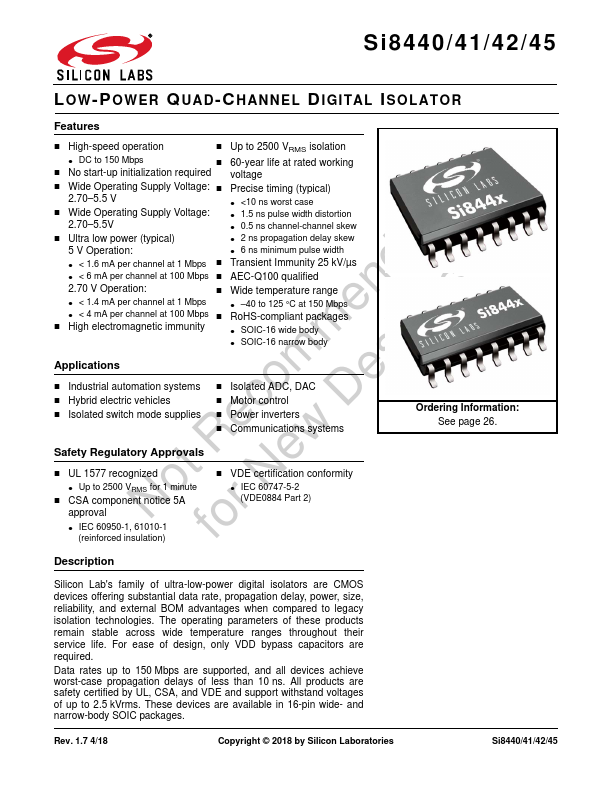

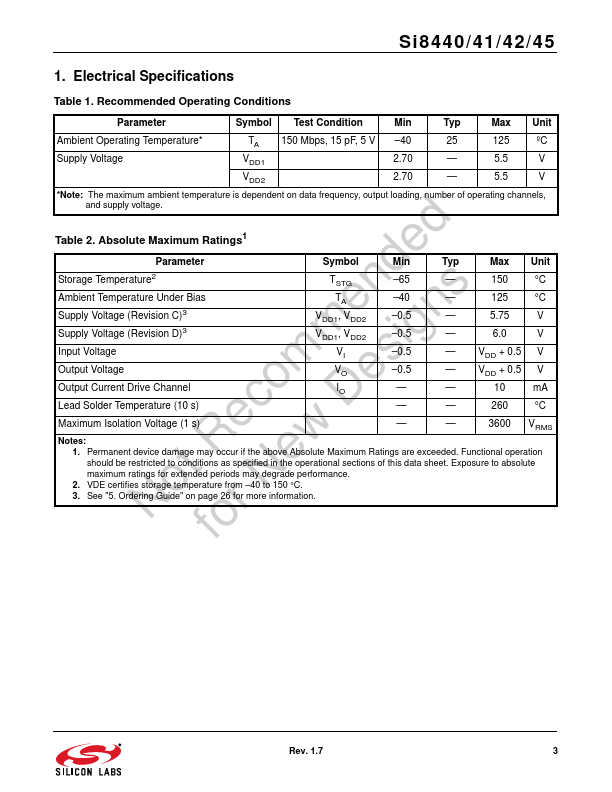

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SI8440
Manufacturer
Silicon Laboratories
File Size
830.80 KB
Datasheet
SI8440_SiliconLaboratories.pdf
Description
LOW-POWER QUAD-CHANNEL DIGITAL ISOLATOR
