TSM971 Open-Drain Single/Dual-Supply Comparator

📥 Download Datasheet  Datasheet Preview Page 1

Description

TSM971/72/73/82/84 Ultra-Low-Power, Open-Drain Single/Dual-Supply Comparators .
The TSM971/972/973/982/984 family of single/dual/quad, low-voltage, micropower analog comparators is electrically and form-factor identical to the MAX.

📥 Download Datasheet

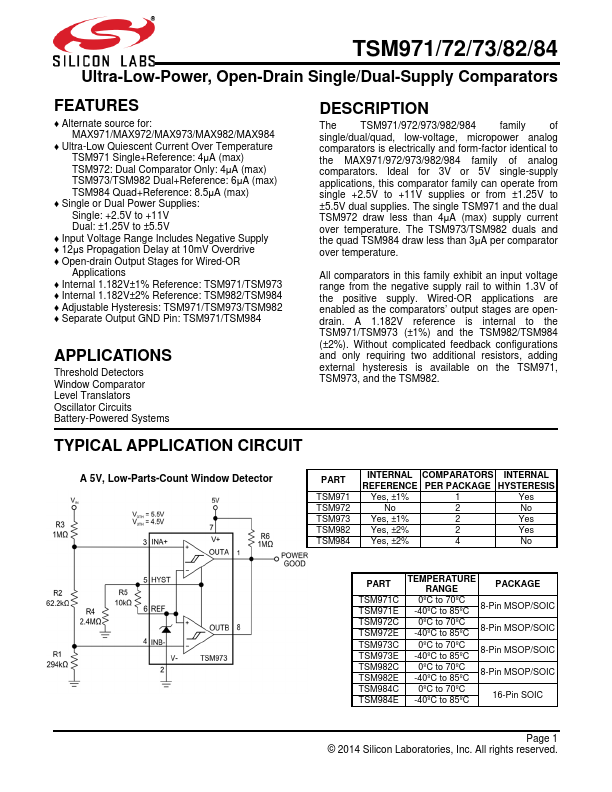

Preview of TSM971 PDF

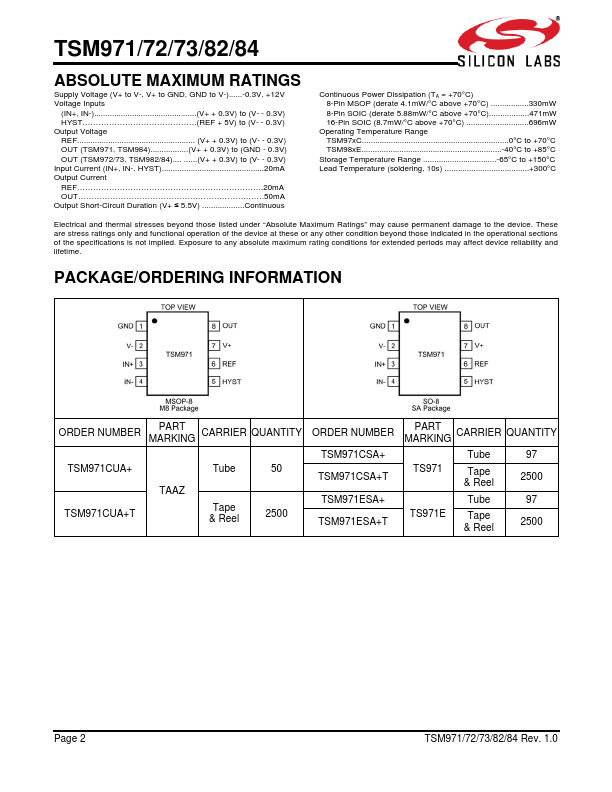

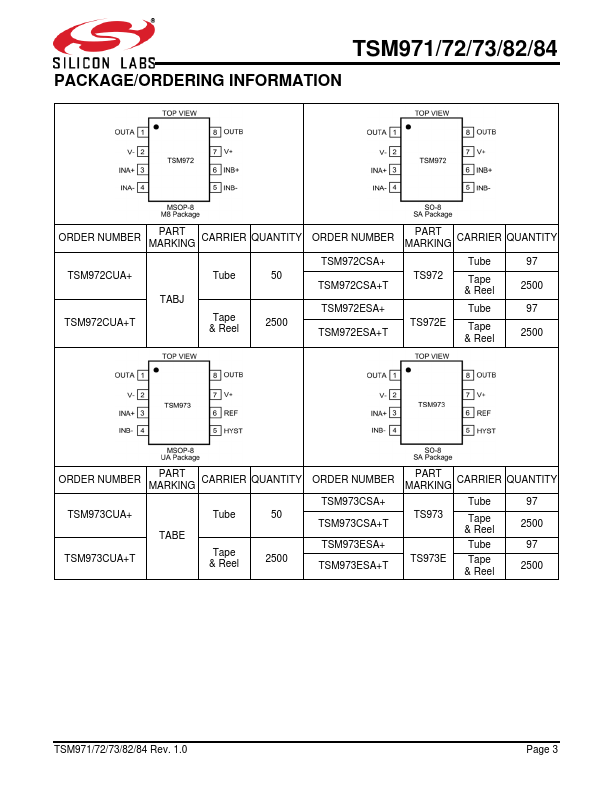

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
TSM971
Manufacturer
Silicon Laboratories
File Size
1.43 MB
Datasheet
TSM971-SiliconLaboratories.pdf
Description
Open-Drain Single/Dual-Supply Comparator

Features

* Alternate source for: MAX971/MAX972/MAX973/MAX982/MAX984
* Ultra-Low Quiescent Current Over Temperature TSM971 Single+Reference: 4μA (max) TSM972: Dual Comparator Only: 4μA (max) TSM973/TSM982 Dual+Reference: 6μA (max) TSM984 Quad+Reference: 8.5μA (max)
* Single or Dual Pow

Applications

* Internal 1.182V±1% Reference: TSM971/TSM973
* Internal 1.182V±2% Reference: TSM982/TSM984
* Adjustable Hysteresis: TSM971/TSM973/TSM982
* Separate Output GND Pin: TSM971/TSM984 APPLICATIONS Threshold Detectors Window Comparator Level Translators Oscillator Circuits
