* Die Dimensions in µm (mils)
* Tight tolerance reverse breakdown voltage
* Sharp reverse characteristics
* Low reverse current levels
* Small f orm factor
* High reliability gold back metal 330 (12.99) 235 (9.25) Ordering Information The following part suffixes apply:
* N
1N5224D
Silicon Supplies
188.45 KB
0.5w zener diode.

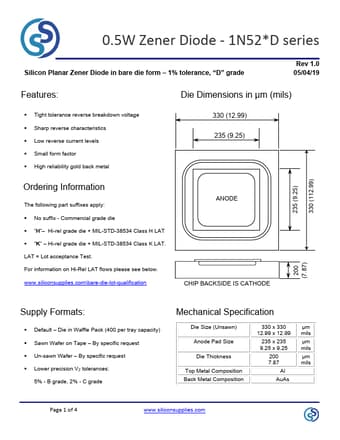

0.5W Zener Diode - 1N52
*D series
Silicon Planar Zener Diode in bare die form
* 1% tolerance, “D” grade
Rev 1.0 05/04/19
235 (9.25) 330 .
