SWK4606 30V Complementary Enhancement-Mode MOSFET

Description

General .
Low gate charge. Use as a load switch. Use in PWM applications SWK4606 30V Complementary Enhancement-Mode MOSFET Product Summary.

📥 Download Datasheet

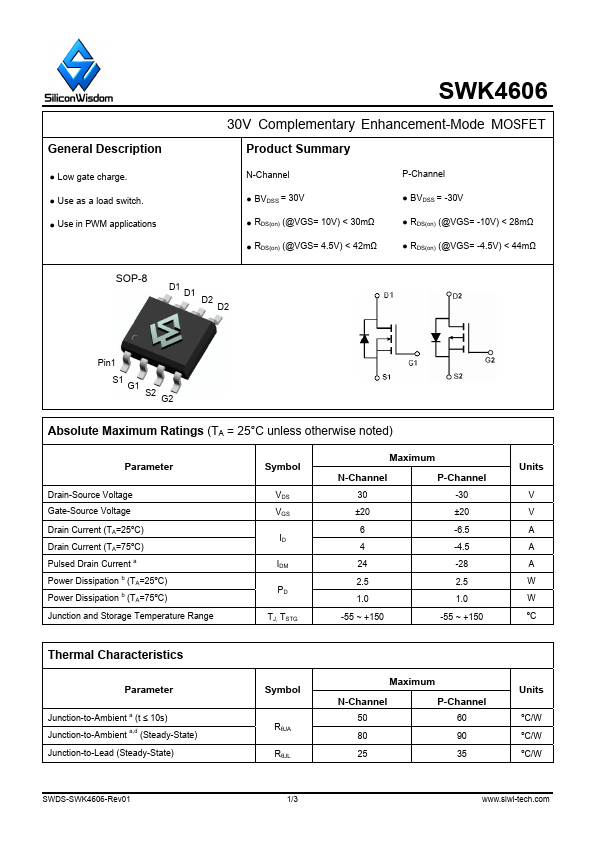

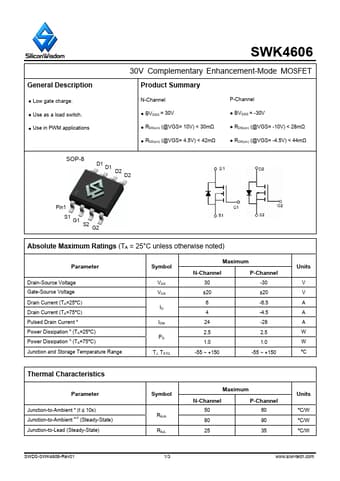

SWK4606 Datasheet Preview — Preview of SWK4606 PDF

Datasheet Specifications

Part number: SWK4606
Manufacturer: Silicon Wisdom
File Size: 167.80 KB
Datasheet: SWK4606-SiliconWisdom.pdf
Description: 30V Complementary Enhancement-Mode MOSFET

Applications

* SWK4606 30V Complementary Enhancement-Mode MOSFET Product Summary N-Channel P-Channel
* BVDSS = 30V
* RDS(on) (@VGS= 10V) < 30mΩ
* RDS(on) (@VGS= 4.5V) < 42mΩ
* BVDSS = -30V
* RDS(on) (@VGS= -10V) < 28mΩ
* RDS(on) (@VGS= -4.5V) < 44mΩ SOP-8 D1 D1 D2 D2 Pin1 S1 G1 S2
