SI2401

V.22BIS ISOMODEM

Silicon

SI2401 Features

* Data modem formats

* Integrated third-generation DAA

* 2400 bps: V.22bis

* Fewer external components required

* 1200 bps: V.22, V.23, Bell 212A

* Over 5000 V capacitive isolation

* 300 bps: V.21, Bell 103

* Parallel phone detect

* Fast connect and V.23

SI2401 General Description

The Si2401 ISOmodem® is a complete, two-chip 2400 bps modem integrating Silicon Labs’ third-generation direct access arrangement (DAA), which provides a globally-programmable telephone line interface with an unprecedented level of integration. Available in two 16-pin SOIC packages, this compact solu.

SI2401 Datasheet (1.69 MB)

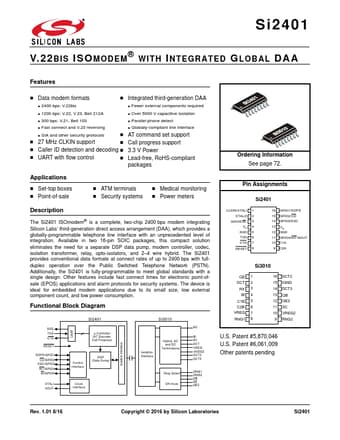

SI2401 Datasheet Preview — Preview of SI2401 PDF

Datasheet Details

Part number:

SI2401

Manufacturer:

Silicon

File Size:

1.69 MB

Description:

V.22bis isomodem.
