2N4303, 2N4302 Datasheet - Siliconix

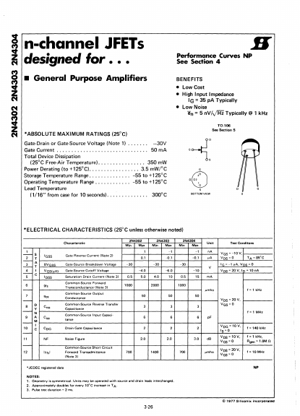

2N4303 n-channel JFET

n-channel JFETs designed for General Purpose Amplifiers H Performance Curves NP See Section 4 BENEFITS Low Cost High Input Impedance IG = 35 pA Typically Low Noise en = 5 nV/y'FiZ Typically @ 1 kHz ABSOLUTE MAXIMUM RATINGS (25°C) Gate-Drain or Gate-Source Voltage (Note 1) -30V Gate Cu rrent 50mA Total Device Dissipation (25°C Free-Air Temperature) 350mW Power Derating (to +125°C). 3.5 mWrC Storage Temperature Range .

2N4302-Siliconix.pdf

This datasheet PDF includes multiple part numbers: 2N4303, 2N4302. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

2N4303, 2N4302

Manufacturer:

Siliconix

File Size:

59.20 KB

Description:

N-channel jfet.

Note:

This datasheet PDF includes multiple part numbers: 2N4303, 2N4302.
Please refer to the document for exact specifications by model.
