BF256LC, BF256LA Datasheet - Siliconix

BF256LC n-channel JFET

n-channel JFETs designed for UHF Amplifiers Mixers Oscillators H Slllcanlx Performance Curves NH See Sedion 4 BENEFITS High Gain Gpg = 14 dB Typical at 800 MHz Selected lOSS Ranges ABSOLUTE MAXIMUM RATINGS Drain-Gate Voltage _ 30 V Drain-Source Voltage 30 V Reverse Gate-Source Voltage 30 V Forward Gate Current 50 mA Total Device Dissipation @ 25°C 350 mW Derate above 25°C 3.5 mW/oC Storage Temperature Range -6.

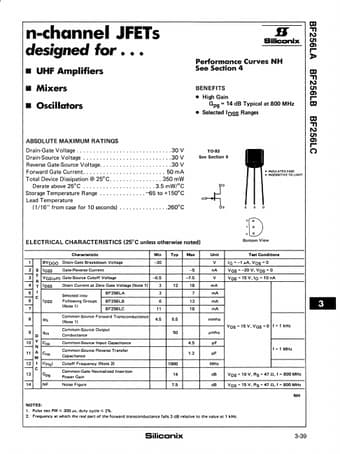

BF256LA-Siliconix.pdf

BF256LC Datasheet Preview — This datasheet PDF includes multiple part numbers: BF256LC, BF256LA. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

BF256LC, BF256LA

Manufacturer:

Siliconix

File Size:

59.14 KB

Description:

N-channel jfet.

Note:

This datasheet PDF includes multiple part numbers: BF256LC, BF256LA.
Please refer to the document for exact specifications by model.
