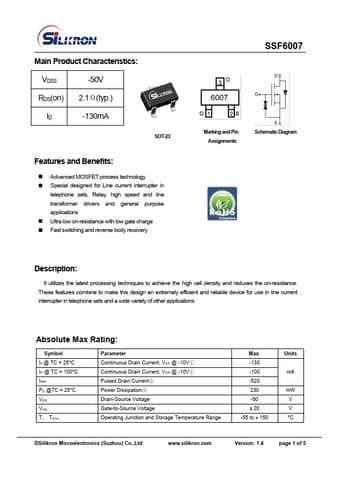

SSF6007
Features and Benefits:
- Advanced MOSFET process technology
- Special designed for Line current interrupter in telephone sets, Relay, high speed and line transformer drivers and general purpose applications
- Ultra low on-resistance with low gate charge
- Fast switching and reverse body recovery
- 150℃ operating temperature
Marking and Pin Assignments
Schematic Diagram
Description
:
It utilizes the latest processing techniques to achieve the high cell density and reduces the on-resistance. These features bine to make this design an extremely efficient and reliable device for use in line current interrupter in telephone sets and a wide variety of other applications
Absolute Max Rating:
Symbol ID @ TC = 25°C ID @ TC = 100°C IDM PD @TC = 25°C VDS VGS TJ TSTG
Parameter Continuous Drain Current, VGS @ -10V① Continuous Drain Current, VGS @ -10V① Pulsed Drain Current② Power Dissipation③ Drain-Source Voltage Gate-to-Source Voltage Operating Junction and Storage Temperature...
