SSF2445CU MOSFET

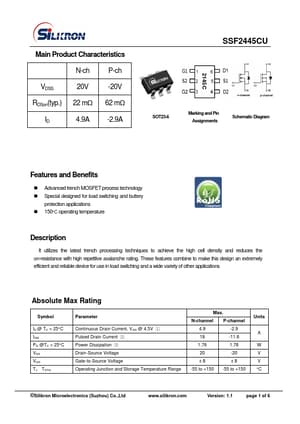

📥 Download Datasheet  Datasheet Preview Page 1

Description

Main Product Characteristics N-ch P-ch VDSS RDSon(typ.) 20V 22 mΩ -20V 62 mΩ ID 4.9A -2.9A SSF2445CU 2145C SOT23-6 Marking and Pin Assignme.
It utilizes the latest trench processing techniques to achieve the high cell density and reduces the on-resistance with high repetitive avalanche rati.

📥 Download Datasheet

Preview of SSF2445CU PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
SSF2445CU
Manufacturer
Silikron
File Size
1.08 MB
Datasheet
SSF2445CU-Silikron.pdf
Description
MOSFET

Features

* Advanced trench MOSFET process technology
