XT4055 Datasheet, Driver, Silinktek

XT4055 Features

  • Driver
  • Low voltage operation
  • Low current drain at standby mode
  • Provide 4 modes motor driver, Forward/Reverse/Stop/Release
  • Over-current auto protection

PDF File Details

Part number:

XT4055

Manufacturer:

Silinktek

File Size:

257.57kb

Download:

📄 Datasheet

Description:

Bi-directional motor driver. The XT4055 is a bi-directional motor driver with Forward/Reverse/stop/ Release function for motor driver application.

  • Featu

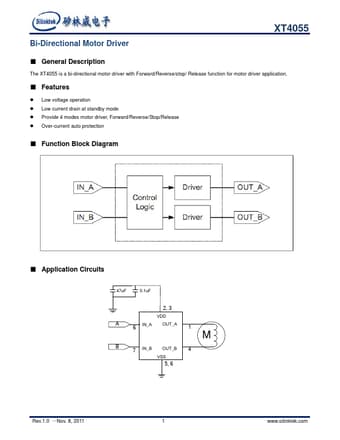

  • Datasheet Preview: XT4055 📥 Download PDF (257.57kb)
    Page 2 of XT4055 Page 3 of XT4055
