SLM27525, SLM27523 Low-Side Gate Driver

Sillumin

Description

SLM27523, SLM27524, SLM27525 Dual-Channel, High-Speed, Low-Side Gate Driver GENERAL .
FEATURES The SLM2752x family of devices are dual-channel, high-speed, low-side gate drivers that can effectively drive MOSFET and IGBT power switche.

📥 Download Datasheet

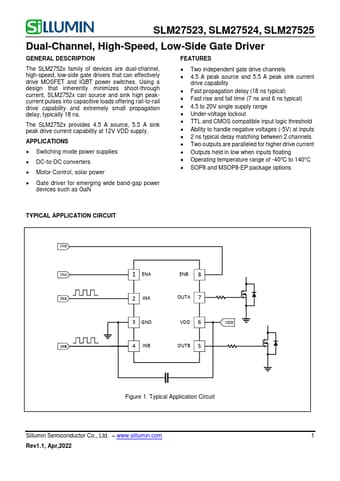

SLM27525 Datasheet Preview — This datasheet PDF includes multiple part numbers: SLM27525, SLM27523. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: SLM27525, SLM27523
Manufacturer: Sillumin
File Size: 703.64 KB
Datasheet: SLM27523-Sillumin.pdf
Description: Low-Side Gate Driver
Note: This datasheet PDF includes multiple part numbers: SLM27525, SLM27523.
Please refer to the document for exact specifications by model.

Features

* The SLM2752x family of devices are dual-channel, high-speed, low-side gate drivers that can effectively drive MOSFET and IGBT power switches. Using a design that inherently minimizes shoot-through current, SLM2752x can source and sink high peakcurrent pulses into capacitive loads offering rail-to-r

Applications

* Switching mode power supplies
* DC-to-DC converters
* Motor Control, solar power
* Two independent gate drive channels
* 4.5 A peak source and 5.5 A peak sink current drive capability
* Fast propagation delay (18 ns typical)
* Fast rise and fall time (7 ns and 6 ns typ
