HS2240B - OTP Encoder

Datasheet Summary

Description

HS2240B is OTP Encoder utilizing CMOS technology process.

HS2240B hai a maximum of 20 bits providing up to 1 million codes.It can reduce any code collision and unauthorized code scanning possibilities.

Features

  • (Compatible:EV1527,RT1527,FP1527) CMOS Technology Low stand by Current:1.0uA Wide range of Operating Voltage:Vcc 3.0～ 12V Up to 4 data pins Total 1048576 address codes Single Resistor Oscillator Available in DIP and SOP Package HS2240B Pin out: (Compatible:EV1527,RT1527,FP1527) HS2240B Pin.

📥 Download Datasheet

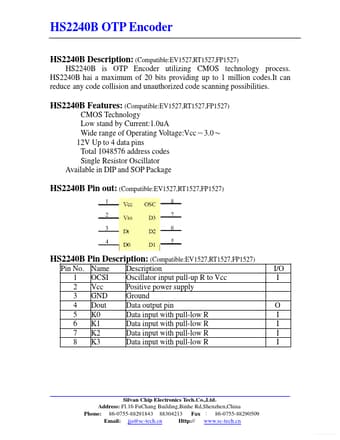

Datasheet preview – HS2240B

Datasheet Details

Part number HS2240B
Manufacturer SilvanChip
File Size 125.34 KB
Description OTP Encoder
Datasheet download datasheet HS2240B Datasheet
Additional preview pages of the HS2240B datasheet.

📁 Similar Datasheet

  • HS2240 - wireless hair code ASIC (HUIYUAN)
  • HS2240 - wireless hair code ASIC (HuaXin)
  • HS2241PT - CMOS-made special codec chip (Tangzheng Electronics)
  • HS2248FT - Proprietary encoder chip (HUAXIN)
  • HS2248FT - Special-purpose coding chip (Tangzheng)
  • HS2211 - 10/100 Base-T Single Port Surface Mount Magnetics (Maconics)
  • HS2212 - 10/100 Base-T Single Port Surface Mount Magnetics (Maconics)
  • HS2213 - 10/100 Base-T Single Port Surface Mount Magnetics (Maconics)
  • HS2232 - 10/100 Base-T Single Port Surface Mount Magnetics (Maconics)
  • HS2260 - HS2260 (ETC)
Other Datasheets by SilvanChip

    Full PDF Text Transcription

    Click to expand full text
    HS2240B OTP Encoder HS2240B Description: (Compatible:EV1527,RT1527,FP1527) HS2240B is OTP Encoder utilizing CMOS technology process. HS2240B hai a maximum of 20 bits providing up to 1 million codes.It can reduce any code collision and unauthorized code scanning possibilities. HS2240B Features: (Compatible:EV1527,RT1527,FP1527) CMOS Technology Low stand by Current:1.0uA Wide range of Operating Voltage:Vcc 3.0～ 12V Up to 4 data pins Total 1048576 address codes Single Resistor Oscillator Available in DIP and SOP Package HS2240B Pin out: (Compatible:EV1527,RT1527,FP1527) HS2240B Pin Description: (Compatible:EV1527,RT1527,FP1527) Pin No.
