U630H16XS Datasheet - Simtek Corporation

HardStore 2K x 8 nvSRAM Die

U630H16XS General Description

The U630H16 has two separate modes of operation: SRAM mode and non-volatile mode, determined by the state of the NE pad. In SRAM mode, the memory operates as an ordinary static RAM. In non-volatile operation, data is transferred in parallel from SRAM to EEPROM or from EEPROM to SRAM. In this mode SR.

U630H16XS Datasheet (268.97 KB)

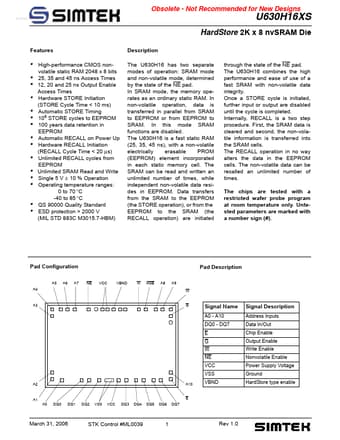

Preview of U630H16XS PDF

Datasheet Details

Part number:

U630H16XS

Manufacturer:

Simtek Corporation

File Size:

268.97 KB

Description:

Hardstore 2k x 8 nvsram die.
