STK10C68 - 8K x 8 nvSRAM

Datasheet Summary

Description

The Simtek STK10C68 is a fast static RAM with a nonvolatile element incorporated in each static memory cell.

The SRAM can be read and written an unlimited number of times, while independent nonvolatile data resides in Nonvolatile Elements.

Features

  • 25ns, 35ns, 45ns and 55ns Access Times.
  • STORE to Nonvolatile Elements Initiated by Hardware.
  • RECALL to SRAM Initiated by Hardware or Power Restore.
  • Automatic STORE Timing.
  • 10mA Typical ICC at 200ns Cycle Time.
  • Unlimited READ, WRITE and RECALL Cycles.
  • 1,000,000 STORE Cycles to Nonvolatile Elements (Industrial/Commercial).
  • 100-Year Data Retention (Industrial/Commercial).
  • Commercial, Industrial and Military Temperatur.

📥 Download Datasheet

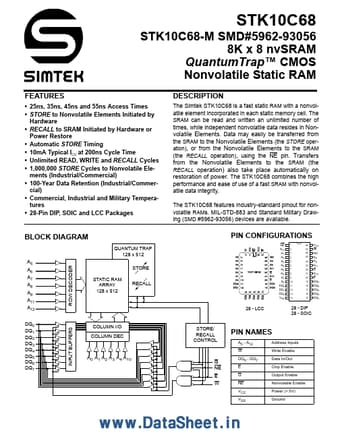

Datasheet preview – STK10C68

Datasheet Details

Part number STK10C68
Manufacturer Simtek
File Size 363.72 KB
Description 8K x 8 nvSRAM
Datasheet download datasheet STK10C68 Datasheet
Additional preview pages of the STK10C68 datasheet.

📁 Similar Datasheet

  • STK103 - N-Channel MOSFET (SamHop Microelectronics)
  • STK1030 - AF Power Amplifier Output Stage (ETC)
  • STK1030 - (STKxxxx) Output Stage of AF Power Amp (ETC)
  • STK1035 - (STKxxxx) Output Stage of AF Power Amp (ETC)
  • STK1039 - (STKxxxx) Output Stage of AF Power Amp (ETC)
  • STK1040 - (STKxxxx) Output Stage of AF Power Amp (ETC)
  • STK1045 - (STKxxxx) Output Stage of AF Power Amp (ETC)
  • STK1049 - (STKxxxx) Output Stage of AF Power Amp (ETC)
  • STK1050 - (STKxxxx) Output Stage of AF Power Amp (ETC)
  • STK1050II - Thick Film Hybrid Integrated Circuit 50W min AF Power Amp Output Stage With Built-in Emitter Resistance (Sanyo Semicon Device)
Other Datasheets by Simtek
  • STK10C48 - 2K X 8 NVSRAM
  • STK11C48 - 8K x 8 nvSRAM QuantumTrap CMOS Nonvolatile Static RAM
  • STK11C68 - 8K x 8 nvSRAM QuantumTrap CMOS Nonvolatile Static RAM
  • STK11C68-M - CMOS NV SRAM
  • STK11C88 - 32Kx8 SoftStore nvSRAM
  • STK11C88-3 - 32K X 8 NVSRAM 3.3 V QUANTUM TRAP CMOS NONVOLATILE STATIC RAM
  • STK12C68 - 8Kx8 AutoStore nvSRAM
  • STK12C68-M - CMOS NV SRAM 8K X 8 AUTOSTORE NONVOLATILE STATIC RAM

Full PDF Text Transcription

Click to expand full text
STK10C68 STK10C68-M SMD#5962-93056 8K x 8 nvSRAM QuantumTrap™ CMOS Nonvolatile Static RAM FEATURES • 25ns, 35ns, 45ns and 55ns Access Times • STORE to Nonvolatile Elements Initiated by Hardware • RECALL to SRAM Initiated by Hardware or Power Restore • Automatic STORE Timing • 10mA Typical ICC at 200ns Cycle Time • Unlimited READ, WRITE and RECALL Cycles • 1,000,000 STORE Cycles to Nonvolatile Elements (Industrial/Commercial) • 100-Year Data Retention (Industrial/Commercial) • Commercial, Industrial and Military Temperatures • 28-Pin DIP, SOIC and LCC Packages DESCRIPTION The Simtek STK10C68 is a fast static RAM with a nonvolatile element incorporated in each static memory cell.
