STK11C88 - 32Kx8 SoftStore nvSRAM

Datasheet Summary

Description

The Simtek STK11C88 is a 256Kb fast static RAM with a non-volatile Quantum Trap storage element included with each memory cell.

The SRAM provides the fast access & cycle times, ease of use and unlimited read & write endurance of a normal SRAM.

Features

  • 25, 45 ns Read Access & R/W Cycle Time.
  • Unlimited Read/Write Endurance.
  • Pin Compatible with Industry Standard SRAMs.
  • Software-initiated STORE and RECALL.
  • Automatic RECALL to SRAM on Power Up.
  • Unlimited RECALL Cycles.
  • 1 Million Store Cycles.
  • 100-Year Non-volatile Data Retention.
  • Single 5V ± 10% Power Supply.
  • Commercial and Industrial Temperatures.
  • 28-pin 300-mil and 330-mil SOIC Packages (RoHS-Comp.

📥 Download Datasheet

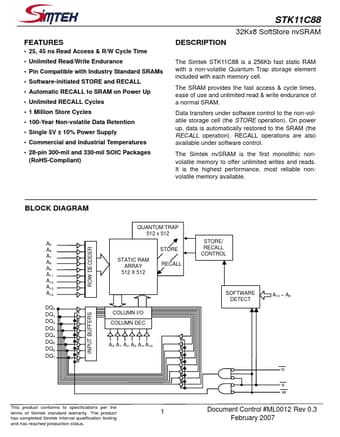

Datasheet preview – STK11C88

Datasheet Details

Part number STK11C88
Manufacturer Simtek
File Size 230.16 KB
Description 32Kx8 SoftStore nvSRAM
Datasheet download datasheet STK11C88 Datasheet
Additional preview pages of the STK11C88 datasheet.

📁 Similar Datasheet

  • STK11C88 - 256 Kbit (32 K x 8) SoftStore nvSRAM (Cypress Semiconductor)
  • STK11C68 - 64-Kbit (8 K x 8) SoftStore nvSRAM (Cypress Semiconductor)
  • STK1160 - USB2.0 TV Tuner/Video Capture Controller (SYNTEK)
  • STK103 - N-Channel MOSFET (SamHop Microelectronics)
  • STK1030 - AF Power Amplifier Output Stage (ETC)
  • STK1030 - (STKxxxx) Output Stage of AF Power Amp (ETC)
  • STK1035 - (STKxxxx) Output Stage of AF Power Amp (ETC)
  • STK1039 - (STKxxxx) Output Stage of AF Power Amp (ETC)
  • STK1040 - (STKxxxx) Output Stage of AF Power Amp (ETC)
  • STK1045 - (STKxxxx) Output Stage of AF Power Amp (ETC)
Other Datasheets by Simtek
  • STK11C88-3 - 32K X 8 NVSRAM 3.3 V QUANTUM TRAP CMOS NONVOLATILE STATIC RAM
  • STK11C48 - 8K x 8 nvSRAM QuantumTrap CMOS Nonvolatile Static RAM
  • STK11C68 - 8K x 8 nvSRAM QuantumTrap CMOS Nonvolatile Static RAM
  • STK11C68-M - CMOS NV SRAM
  • STK10C48 - 2K X 8 NVSRAM
  • STK10C68 - 8K x 8 nvSRAM
  • STK12C68 - 8Kx8 AutoStore nvSRAM
  • STK12C68-M - CMOS NV SRAM 8K X 8 AUTOSTORE NONVOLATILE STATIC RAM

Full PDF Text Transcription

Click to expand full text
www.DataSheet4U.com STK11C88 32Kx8 SoftStore nvSRAM DESCRIPTION The Simtek STK11C88 is a 256Kb fast static RAM with a non-volatile Quantum Trap storage element included with each memory cell. The SRAM provides the fast access & cycle times, ease of use and unlimited read & write endurance of a normal SRAM. Data transfers under software control to the non-volatile storage cell (the STORE operation). On power up, data is automatically restored to the SRAM (the RECALL operation). RECALL operations are also available under software control. The Simtek nvSRAM is the first monolithic nonvolatile memory to offer unlimited writes and reads. It is the highest performance, most reliable nonvolatile memory available.
