STK17TA8 - 128Kx8 Autostore nvSRAM

Name: STK17TA8
SKU: STK17TA8-602143

Simtek

📥 Download Datasheet

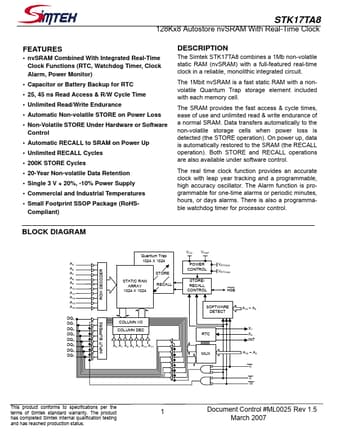

STK17TA8 Datasheet Preview — Preview of STK17TA8 PDF

Datasheet Details

Part number	STK17TA8
Manufacturer	Simtek
File Size	448.00 KB
Description	128Kx8 Autostore nvSRAM
Datasheet	STK17TA8_Simtek.pdf

STK17TA8 Product details

Description

The Simtek STK17TA8 combines a 1Mb non-volatile static RAM (nvSRAM) with a full-featured real-time clock in a reliable, monolithic integrated circuit.

Features

nvSRAM Combined With Integrated Real-Time Clock Functions (RTC, Watchdog Timer, Clock Alarm, Power Monitor).
Capacitor or Battery Backup for RTC.
25, 45 ns Read Access & R/W Cycle Time.
Unlimited Read/Write Endurance.
Automatic Non-volatile STORE on Power Loss.
Non-Volatile STORE Under Hardware or Software Control.
Automatic RECALL to SRAM on Power Up.
Unlimited RECALL Cycles.
200K STORE Cycles.
20-Year No.
