MUR1520F, MUR1505 - 15.0Amp Super Fast Rectifiers

MUR1520F Description

Shanghai Sinble    s   MUR1505(F)-MUR1560(F) 15.0Amp Super Fast Rectifiers .

MUR1520F Features

* The plastic package carries Underwriters Laboratory Flammability Classification 94V-0 Low reverse leakage High forward surge current capability Low forward voltage,high efficiency. For use in low voltage,high frequency inverters. Dual rectifier consruction,positive center tap. High temperature solde

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MUR1520F, MUR1505. Please refer to the document for exact specifications by model.

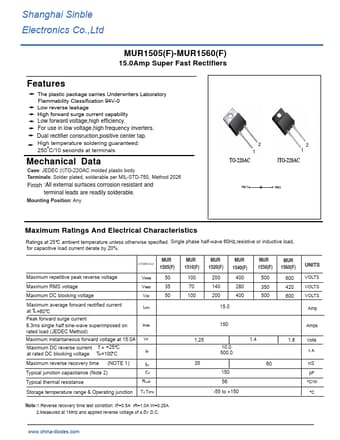

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MUR1520F, MUR1505
Manufacturer
Sinble Electronics
File Size
258.08 KB
Datasheet
MUR1505-SinbleElectronics.pdf
Description
15.0Amp Super Fast Rectifiers
Note
This datasheet PDF includes multiple part numbers: MUR1520F, MUR1505.
Please refer to the document for exact specifications by model.
