QW2886 Datasheet - SincereTek

QW2886 LED Emergency Lighting driver

QW2886 LED Emergency Lighting driver Package Reference QW2886 is a LED driver designed for Emergency Lighting., The QW2886 employs patent protected main line detecting methodology to control and drive the emergency lighting system, without any peripheral components. The QW2886 can drive an LED loa.

QW2886 Features

* (Top View) SOP-8

* Simplified application circuitry

* AC main line detecting directly

* 85‐265Vac

* EN PIN drive LED load directly

* Integrated single lithium‐ion/polymer battery management and protection Application

* Emergency lighting

* Stand‐by Lighting Typical Ap

QW2886-SincereTek.pdf

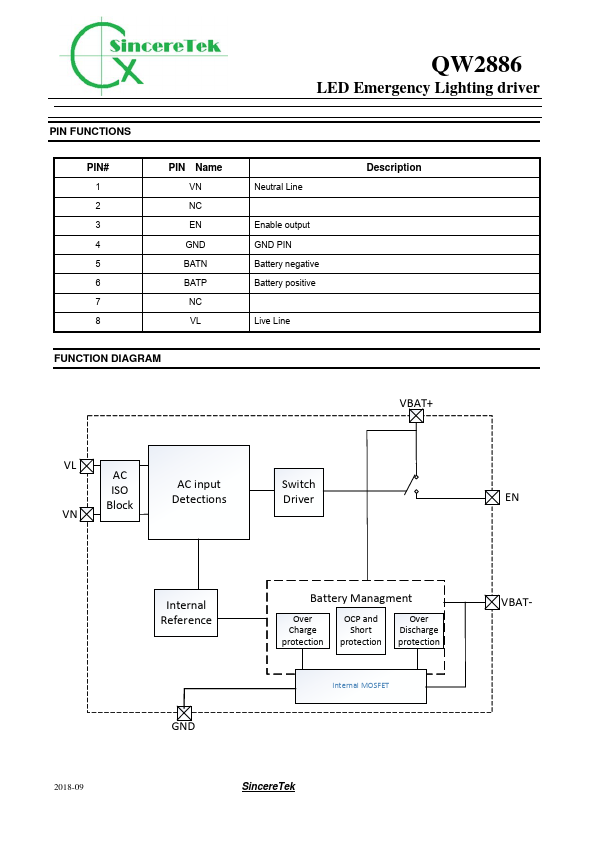

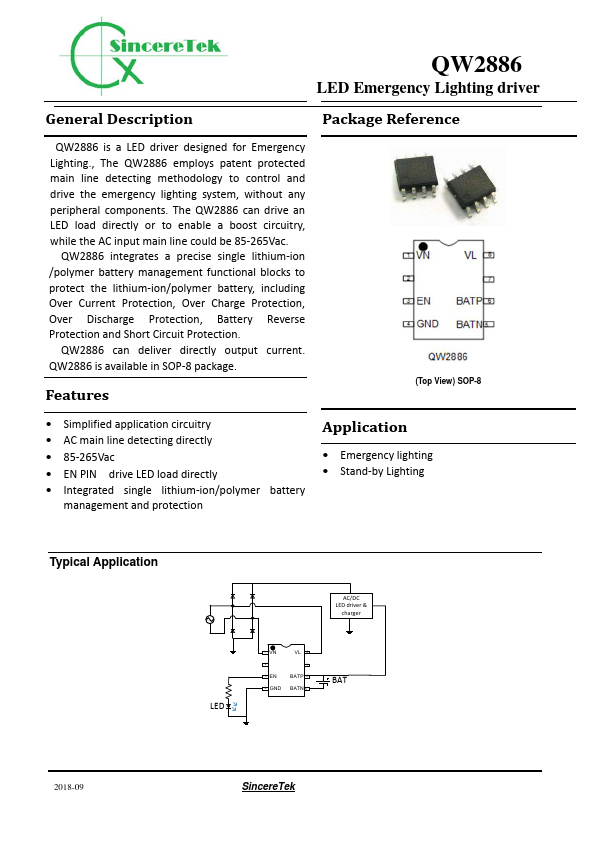

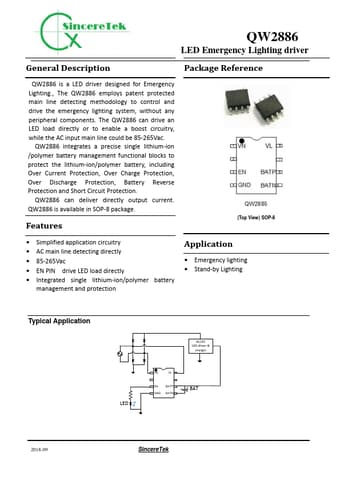

QW2886 Datasheet Preview — Preview of QW2886 PDF

Datasheet Details

Part number:

QW2886

Manufacturer:

SincereTek

File Size:

253.68 KB

Description:

Led emergency lighting driver.
