QW2889C Emergency Lighting Driver

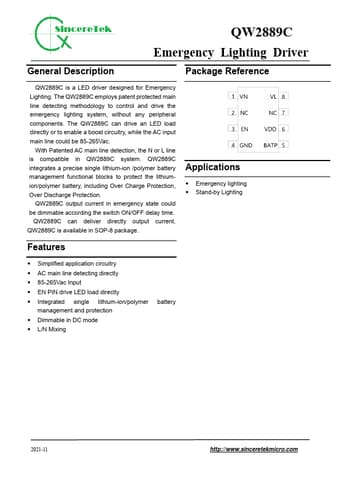

Package Reference QW2889C is a LED driver designed for Emergency Lighting. The QW2889C employs patent protected main line detecting methodology to control and drive the emergency lighting system, without any peripheral components. The QW2889C can drive an LED load directly or to enable a boost cir.

QW2889C Features

* Simplified application circuitry

* AC main line detecting directly

* 85-265Vac Input

* EN PIN drive LED load directly

* Integrated single lithium-ion/polymer management and protection

* Dimmable in DC mode

* L/N Mixing battery 2021-11 htt

QW2889C-SincereTek.pdf

QW2889C Datasheet Preview — Preview of QW2889C PDF

Datasheet Details

Part number:

QW2889C

Manufacturer:

SincereTek

File Size:

405.65 KB

Description:

Emergency lighting driver.
