APM1110NU - N-Channel MOSFET

APM1110NU Description

APM1110NU/APM1110NUB ® N-Channel Enhancement Mode MOSFET .
D S G S D G Top View of TO-252-2 Top View of TO-251 D Applications G. Power Management in TV Inverter.

APM1110NU Features

* 100V/10A, RDS(ON)= 175mΩ (max. ) @ VGS=10V RDS(ON)= 235mΩ (max. ) @ VGS=4.5V
* ESD Protected
* Reliable and Rugged
* Lead Free and Green Devices Available (RoHS Compliant)

APM1110NU Applications

* G
* Power Management in TV Inverter. S N-Channel MOSFET Ordering and Marking Information APM1110N Assembly Material Handling Code Temperature Range Package Code Package Code U : TO-252-2 UB : TO-251 Operating Junction Temperature Range C : -55 to 175 oC Handling Code TR : Tape & Reel

📥 Download Datasheet

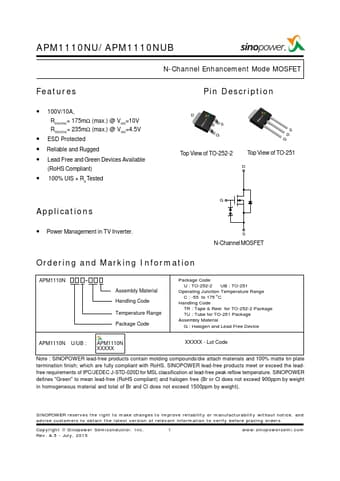

Preview of APM1110NU PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
APM1110NU
Manufacturer
Sinopower
File Size
144.52 KB
Datasheet
APM1110NU-Sinopower.pdf
Description
N-Channel MOSFET
