SM1200NSAS Datasheet, Mosfet, Sinopower

SM1200NSAS Features

  • Mosfet Pin Description
  • 60V/0.2A , RDS(ON)=2.2W(max.) @ VGS=10V RDS(ON)=2.6W(max.) @ VGS=4.5V
  • ESD Protection : HBM=(+/-)1600V MM=(+/-)100V
  • Lead Free and Green De

PDF File Details

Part number:

SM1200NSAS

Manufacturer:

Sinopower

File Size:

233.07kb

Download:

📄 Datasheet

Description:

N-channel mosfet.

  • 60V/0.2A , RDS(ON)=2.2W(max.) @ VGS=10V RDS(ON)=2.6W(max.) @ VGS=4.5V
  • ESD Protection : HBM=(+/-)1600V MM=(+/-)10

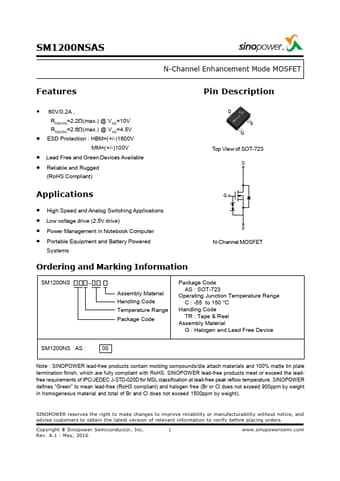

  • Datasheet Preview: SM1200NSAS 📥 Download PDF (233.07kb)
    Page 2 of SM1200NSAS Page 3 of SM1200NSAS

    SM1200NSAS Application

    • Applications
    • High Speed and Analog Switching Applications
    • Low voltage drive (2.5V drive)
    • Power Management in Notebook

    TAGS

    SM1200NSAS
    N-Channel
    MOSFET
    Sinopower
