SM1301NSSA - N-Channel MOSFET

SM1301NSSA Description

SM1301NSSA .
D S G Top View of SOT-523 D Applications. High Speed and Analog Switching Applications. Low voltage drive (2.

SM1301NSSA Features

* 30V/0.8A, RDS(ON)= 0.8W(max. ) @ VGS=10V RDS(ON)= 1.1W(max. ) @ VGS=4.5V RDS(ON)= 2.1W(max. ) @ VGS=2.5V
* Reliable and Rugged
* Lead Free and Green Devices Available (RoHS Compliant)

SM1301NSSA Applications

* High Speed and Analog Switching Applications
* Low voltage drive (2.5V drive) G S N-Channel MOSFET Ordering and Marking Information SM1301NS Assembly Material Handling Code Temperature Range Package Code Package Code SA : SOT-523 Operating Junction Temperature Range C : -55 to 150 oC

📥 Download Datasheet

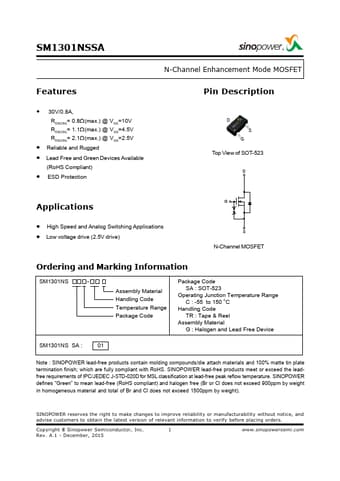

Preview of SM1301NSSA PDF
