SM1501GSQH - Dual N-Channel MOSFET

SM1501GSQH Description

SM1501GSQH .
S2 G2 D1 D2 G1 S1 Top View of SOT-563 (6)D1 (3)D2 Applications (2) (5) G1 G2. Power Supply Converter Circuits. Load/Power Switches.

SM1501GSQH Features

* 20V/0.55A , RDS(ON)= 800mW(max. ) @ VGS=4.5V RDS(ON)= 1100mW(max. ) @ VGS=2.5V RDS(ON)= 1450mW(max. ) @ VGS=1.8V
* Reliable and Rugged
* Lead Free and Green Devices Available (RoHS Compliant)

SM1501GSQH Applications

* (2) (5) G1 G2
* Power Supply Converter Circuits.
* Load/Power Switches.
* Battery Management. Ordering and Marking Information (1)S1 (4)S2 N-Channel MOSFET SM1501GS Assembly Material Handling Code Temperature Range Package Code Package Code QH : SOT-563 Operating Junction Tempera

📥 Download Datasheet

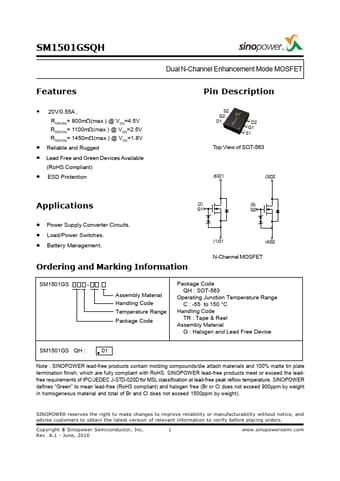

Preview of SM1501GSQH PDF
