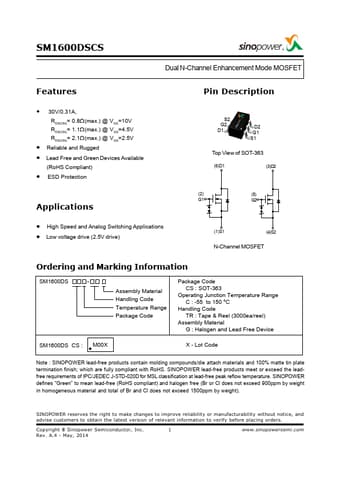

SM1600DSCS Datasheet, Mosfet, Sinopower

SM1600DSCS Features

• Mosfet Pin Description
• 30V/0.31A, RDS(ON)= 0.8W(max.) @ VGS=10V RDS(ON)= 1.1W(max.) @ VGS=4.5V RDS(ON)= 2.1W(max.) @ VGS=2.5V
• Reliable and Rugged
• Lead Free and

PDF File Details

Part number:

SM1600DSCS

Manufacturer:

Sinopower

File Size:

532.45kb

Download:

📄 Datasheet

Description:

Dual n-channel mosfet.

30V/0.31A, RDS(ON)= 0.8W(max.) @ VGS=10V RDS(ON)= 1.1W(max.) @ VGS=4.5V RDS(ON)= 2.1W(max.) @ VGS=2.5V

Reliable

SM1600DSCS Application

• Applications
• High Speed and Analog Switching Applications
• Low voltage drive (2.5V drive) S2 G2 D1 D2 G1 S1 Top View of SOT-36
