SM4377, SM4377NSKP - N-Channel MOSFET

SM4377 Description

SM4377NSKP .
DDDD S S SG DFN5x6A-8_EP (5,6,7,8) DD DD Pin 1 Applications (4) G. Power Management in Desktop Computer or DC/DC Converters.

SM4377 Features

* 30V/50A, RDS(ON)= 7mΩ (max. ) @ VGS=10V RDS(ON)= 9.6mΩ (max. ) @ VGS=4.5V
* Provide Excellent Qgd x Rds-on
* 100% UIS + R Tested g
* Reliable and Rugged
* Lead Free and Green Devices Available (RoHS Compliant) ® N-Channel Enhancement Mode MOSFET Pin D

SM4377 Applications

* (4) G
* Power Management in Desktop Computer or DC/DC Converters. Ordering and Marking Information SSS ( 1, 2, 3 ) N-Channel MOSFET SM4377NS Assembly Material Handling Code Temperature Range Package Code Package Code KP : DFN5x6A-8_EP Operating Junction Temperature Range C : -55 to 150

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SM4377, SM4377NSKP. Please refer to the document for exact specifications by model.

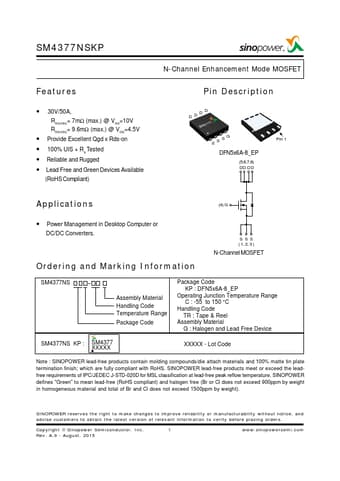

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SM4377, SM4377NSKP
Manufacturer
Sinopower
File Size
203.06 KB
Datasheet
SM4377NSKP-Sinopower.pdf
Description
N-Channel MOSFET
Note
This datasheet PDF includes multiple part numbers: SM4377, SM4377NSKP.
Please refer to the document for exact specifications by model.
