SM4502NHKP - N-Channel MOSFET

Description

DDDD S S SG DFN5x6-8 (5,6,7,8) DD DD Pin 1 Applications

DC/DC Converters.

Features

  • 30V/100A, RDS(ON)= 2mΩ (Max. ) @ VGS=10V R= DS(ON) 3.2mΩ (Max. ) @ V =4.5V GS.
  • Reliable and Rugged.
  • Lower Qg and Qgd for high-speed switching.
  • Lower RDS(ON) to Minimize Conduction Losses.
  • Lead Free and Green Devices Available (RoHS Compliant).
  • 100% UIS + Rg Tested Pin.

📥 Download Datasheet

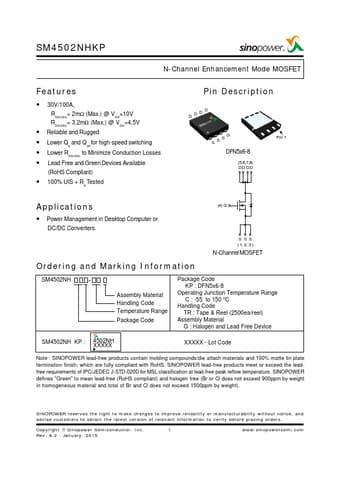

Datasheet preview – SM4502NHKP

Datasheet Details

Part number SM4502NHKP
Manufacturer Sinopower
File Size 207.47 KB
Description N-Channel MOSFET
Datasheet download datasheet SM4502NHKP Datasheet
Additional preview pages of the SM4502NHKP datasheet.

📁 Similar Datasheet

  • SM451R - Magnetoresistive Sensor (Honeywell)
  • SM4527 - Surface Mount Wirewound Resistor (Stackpole)
  • SM453229-231N7Y - 10/100/1000 Base-T PoE+ Chip LAN Transformer (BOURNS)
  • SM453229-381N7Y - 10/100/1000 Base-T Chip LAN Transformer (BOURNS)
  • SM453R - Magnetoresistive Sensor (Honeywell)
  • SM4558 - Dual Low Noise Operation Amplifier (OEI)
  • SM4558 - SM4558 (SHENZHEN STATE MICROELECTRONICS)
  • SM45KPA110AN - 500 WATT TVS ARRAY (Protek Devices)
  • SM45KPA160AN - 500 WATT TVS ARRAY (Protek Devices)
  • SM45KPA200AN - 500 WATT TVS ARRAY (Protek Devices)
Other Datasheets by Sinopower

Full PDF Text Transcription

Click to expand full text
SM4502NHKP ® N-Channel Enhancement Mode MOSFET Features • 30V/100A, RDS(ON)= 2mΩ (Max.) @ VGS=10V R= DS(ON) 3.2mΩ (Max.) @ V =4.5V GS • Reliable and Rugged • Lower Qg and Qgd for high-speed switching • Lower RDS(ON) to Minimize Conduction Losses • Lead Free and Green Devices Available (RoHS Compliant) • 100% UIS + Rg Tested Pin Description DDDD S S SG DFN5x6-8 (5,6,7,8) DD DD Pin 1 Applications • Power Management in Desktop Computer or DC/DC Converters.
