SM8052NHKP - N-Channel Enhancement Mode MOSFET

SM8052NHKP Description

SM8052NHKP N-Channel Enhancement Mode MOSFET .
DDDD S SSG Pin 1 DFN5x6A-8_EP (5,6,7,8) DD DD Applications. Synchronous Rectification for Flyback Converters. Charger for Mobi.

SM8052NHKP Features

* 80V/100A
* RDS(ON)=3.1mΩ(max. )@VGS=10V RDS(ON)=4mΩ(max. )@VGS=4.5V
* 100% UIS + Rg Tested
* Reliable and Rugged
* Lead Free and Green Devices Available (RoHS Compliant)

SM8052NHKP Applications

* Synchronous Rectification for Flyback Converters.
* Charger for Mobile Devices.
* USB-PD Adaptors. (4) G S SS (1,2,3) N-Channel MOSFET Ordering and Marking Information SM8052NH Assembly Material Handling Code Temperature Range Package Code Package Code KP : DFN5x6A-8_E

📥 Download Datasheet

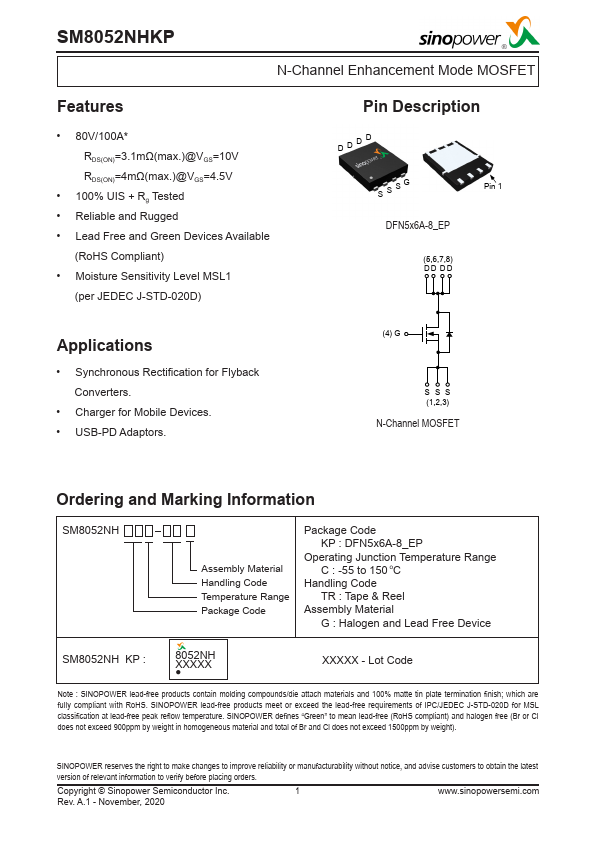

Preview of SM8052NHKP PDF

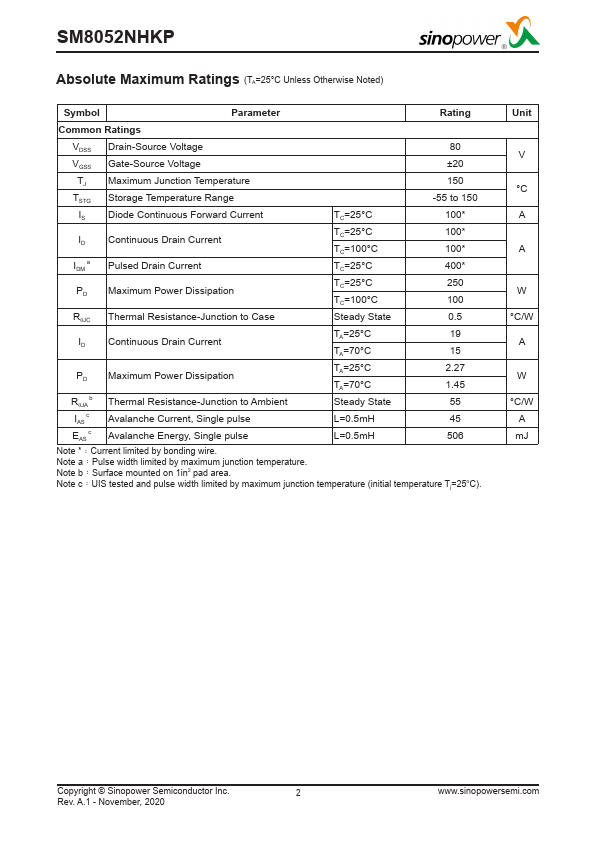

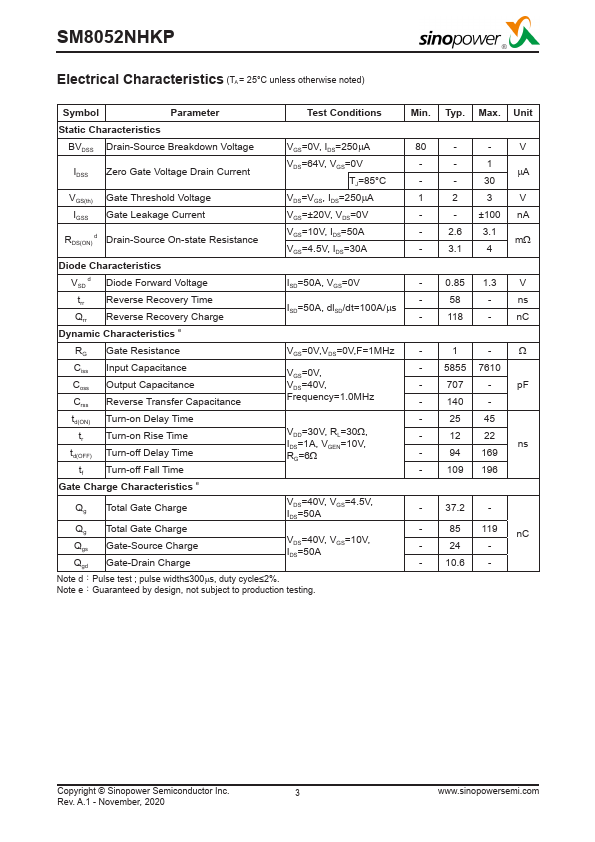

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SM8052NHKP
Manufacturer
Sinopower
File Size
727.00 KB
Datasheet
SM8052NHKP-Sinopower.pdf
Description
N-Channel Enhancement Mode MOSFET
