29152T5

Low Dropout Voltage Regulator

29152T5 Features

* Adjustable Output Down To 1.25V

* 1% Output Accuracy

* Output Current of 1.5A

* Low Dropout Voltage of 390mV @ 1.5A

* Extremely Tight Load and Line Regulation www.DataSheet4U.com

* Extremely Fast Transient Response

* Reverse-Battery Protection

* Zero Current Shutdow

29152T5 General Description

The SPX29150/51/52/53 are 1.5A, highly accuracy voltage regulators with a low drop out voltage of 390mV dropout (typical) @ 1.5A. These regulators are specifically designed for low voltage applications that require a low dropout voltage and a fast transient response. They are fully fault protected a.

29152T5 Datasheet (114.96 KB)

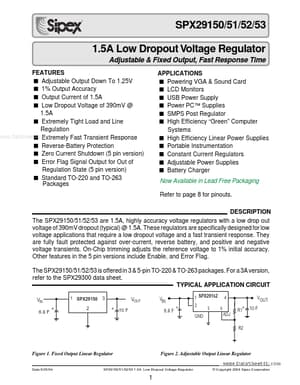

Preview of 29152T5 PDF

Datasheet Details

Part number:

29152T5

Manufacturer:

Sipex Corporation

File Size:

114.96 KB

Description:

Low dropout voltage regulator.
