AS4040

Precision Micropower 2.5V Shunt Voltage Reference

Sipex Corporation

AS4040 Features

* Constant Current Source

* Digital Voltmeter

* Power Supply Monitor

* Precision Regulators

* Battery-Powered Equipment

* Instrumentation

* Automotive Electronics

* Data Acquisition Systems

* Energy Management APPLICATIONS PR

AS4040 General Description

The AS4040 is a two-terminal, temperature compensated, band-gap voltage reference, which provides a fixed 2.5V output for input currents between 100 µA to 15mA. The bandgap voltage (2.5V) is independently trimmed from the output voltage to achieve a very low tempco. This trimming technique process g.

AS4040 Datasheet (160.96 KB)

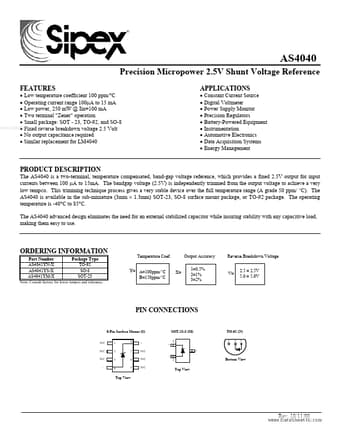

AS4040 Datasheet Preview — Preview of AS4040 PDF

Datasheet Details

Part number:

AS4040

Manufacturer:

Sipex Corporation

File Size:

160.96 KB

Description:

Precision micropower 2.5v shunt voltage reference.
AS4040 Precision Micropower 2.5V Shunt Voltage Reference

* Low temperature coefficient 100 ppm/°C

* Operating current range 100µA to 1.
