HS3140

14-Bit Multiplying DACs

Sipex Corporation

HS3140 Features

* The SP7514 and HS3140 are precision 14-bit multiplying DACs. The DACs are implemented as a onechip CMOS circuit with a resistor ladder network. Three output lines are provided on the DACs to allow unipolar and bipolar output connection with a minimum of external components. The feedback resistor is

HS3140 General Description

The SP7514 and HS3140 are precision 14-bit multiplying DACs, that provide four-quadrant multiplication. Both parts accept both AC and DC reference voltages. The SP7514 is available for use in commercial and industrial temperature ranges, packaged in a 20-pin SOIC. The HS3140 is available in commerc.

HS3140 Datasheet (144.54 KB)

HS3140 Datasheet Preview — Preview of HS3140 PDF

Datasheet Details

Part number:

HS3140

Manufacturer:

Sipex Corporation

File Size:

144.54 KB

Description:

14-bit multiplying dacs.

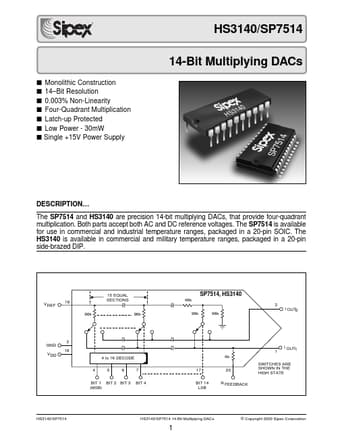

® HS3140/SP7514 14-Bit Multiplying DACs s Monolithic Construction s 14

*Bit Resolution s 0.003% Non-Linearity s Four-Quadrant Multiplication .
