MPC850 Connecting SP5301 to MPC850 PowerQUICC

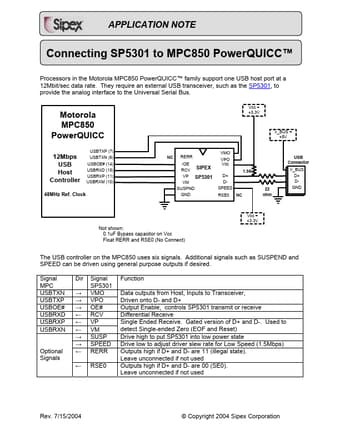

APPLICATION NOTE Connecting SP5301 to MPC850 PowerQUICC™ Processors in the Motorola MPC850 PowerQUICC™ family support one USB host port at a 12Mbit/sec data rate. They require an external USB transceiver, such as the SP5301, to provide the analog interface to the Universal Serial Bus. Motorola MPC850 PowerQUICC 12Mbps USB Host Controller 48MHz Ref. Clock USBTXP (7) USBTXN (6) USBOE# (14) USBRXD (15) USBRXP (11) USBRXM (10) NC RERR /OE RCV SIPEX VP SP5301 VM SUSPND GND VMO VPO Vcc D+ DSPEED RSE.

MPC850_SipexCorporation.pdf

MPC850 Datasheet Preview — Preview of MPC850 PDF

Datasheet Details

Part number:

MPC850

Manufacturer:

Sipex Corporation

File Size:

84.61 KB

Description:

Connecting sp5301 to mpc850 powerquicc.
