SP6125

Step Down Controller

Sipex Corporation

SP6125 Features

* Wide 4.5V

* 29V Input Voltage Range Internal Compensation Built-in High Current PMOS Driver Adjustable Overcurrent Protection Internal soft-start 300kHz Constant Frequency Operation 0.6V Reference Voltage 1% output setpoint accuracy Lead Free, RoHS Compliant Package: Small 6 pin TSOT LX GN

SP6125 General Description

The SP6125 is a PWM controlled step down (buck) voltage mode regulator with VIN feedforward and internal Type-II compensation. It operates from 4.5V to 29V, making is suitable for 5V, 12V, and 24V applications. By using a PMOS driver, this device is capable of operating at 100% duty cycle. The high.

SP6125 Datasheet (549.79 KB)

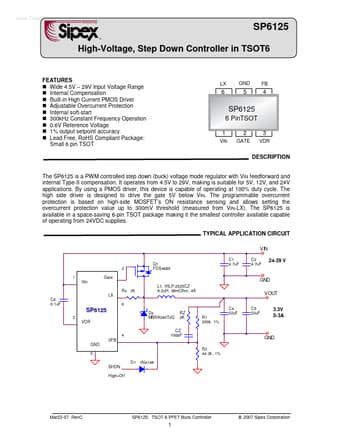

SP6125 Datasheet Preview — Preview of SP6125 PDF

Datasheet Details

Part number:

SP6125

Manufacturer:

Sipex Corporation

File Size:

549.79 KB

Description:

Step down controller.
