HUR4020PT Datasheet (Sirectifier Semiconductors) - High-Performance Wide Temperature Range Ultra Fast Recovery Epitaxial Diodes

HUR4020PT, High-Performance Wide Temperature Range Ultra Fast Recovery Epitaxial Diodes

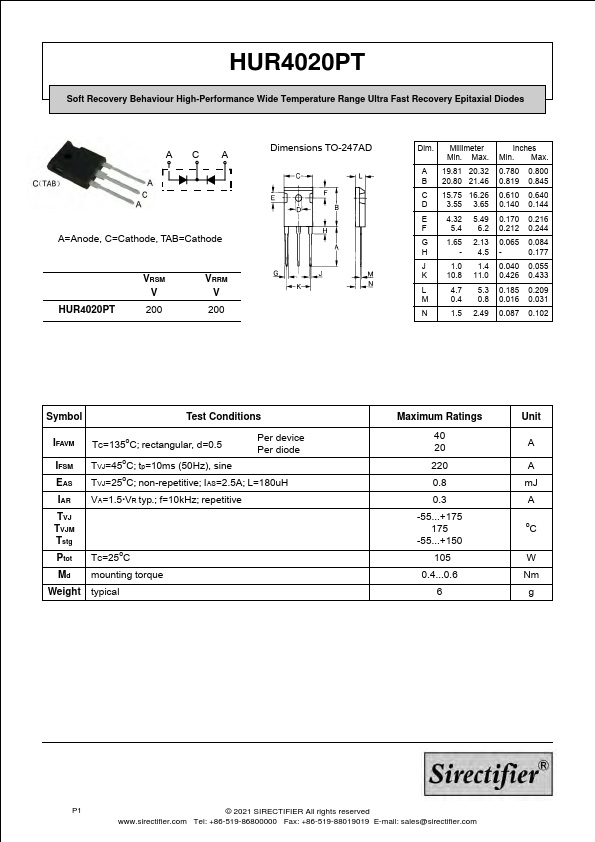

HUR4020PT Soft Recovery Behaviour High-Performance Wide Temperature Range Ultra Fast Recovery Epitaxial Diodes C(TAB) AC A A C A A=Anode, C=Cathode, TAB=Cathode HUR4020PT VRSM V 200 VRRM V 200 Dimensions TO-247AD Dim.

Millimeter Min.

Max.

A 19.81 20.32 B 20.80 21.46 C 15.75 16.26 D 3.55 3.65 E 4.32 5.49 F 5.4 6.2 G 1.65 2.13 H - 4.5 J 1.0 1.4 K 10.8 11.0 L 4.7 5.3 M 0.4 0.8 N 1.5 2.49 Inches Min.

Max.

0.780 0.800 0.819 0.845 0.610 0.640 0.140 0.144 0.170 0.216 0.212

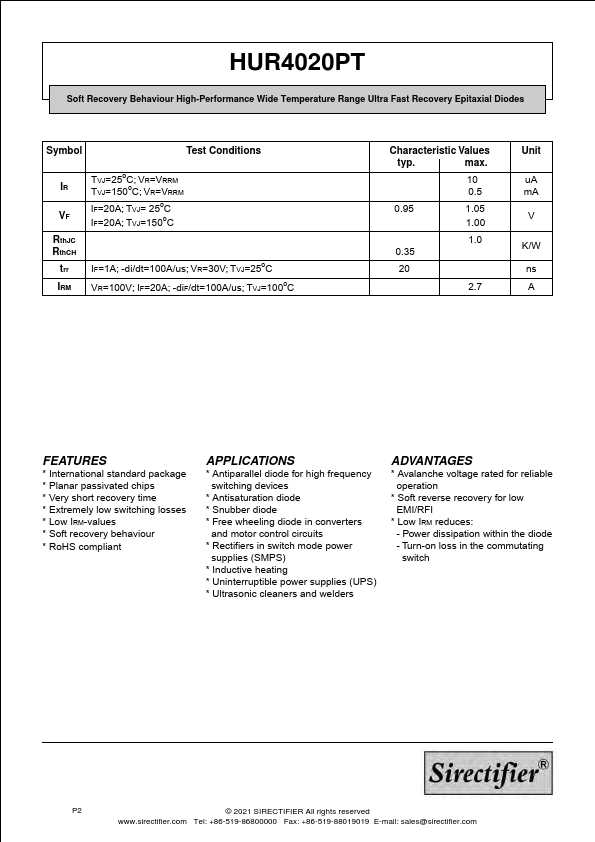

HUR4020PT Features

* International standard package

* Planar passivated chips

* Very short recovery time

* Extremely low switching losses

* Low IRM-values

* Soft recovery behaviour

* RoHS compliant APPLICATIONS

* Antiparallel diode for high frequency switching devices

* Antisaturat
