BTA24-1000 - Discrete Triacs

This page provides the datasheet information for the BTA24-1000, a member of the BTA24 Discrete Triacs family.

Sirectifier

Datasheet Details

Part number	BTA24-1000
Manufacturer	Sirectifier
File Size	409.76 KB
Description	Discrete Triacs
Datasheet	BTA24-1000 Datasheet
Additional preview pages of the BTA24-1000 datasheet.

📁 Similar Datasheet

BTA24-600 - Triac (CDIL)
BTA24-600B - 25A Triacs (STMicroelectronics)
BTA24-600B - Triac (INCHANGE)
BTA24-600BW - 25A Triacs (STMicroelectronics)
BTA24-600BW - Three quadrant triacs (HAOPIN)
BTA24-600BW - Triac (INCHANGE)
BTA24-600BW - silicon bidirectional devices (UMW)
BTA24-600C - silicon bidirectional devices (UMW)
BTA24-600CW - 25A Triacs (STMicroelectronics)
BTA24-600CW - Triac (INCHANGE)

Other Datasheets by Sirectifier

BTA24-1200 - Discrete Triacs
BTA24-200 - Discrete Triacs
BTA24-400 - Discrete Triacs
BTA24-600 - Discrete Triacs
BTA24-800 - Discrete Triacs
BTA24 - Discrete Triacs
BTA10 - Discrete Triacs
BTA15 - Discrete Triacs

Full PDF Text Transcription

Click to expand full text

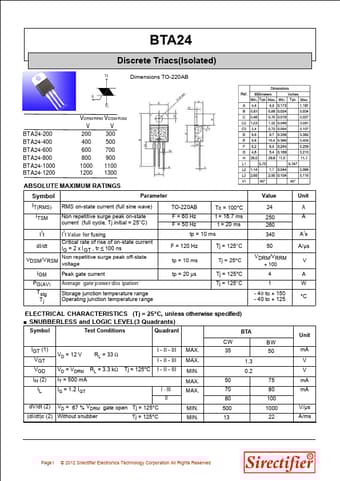

BTA24 Discrete Triacs(Isolated) T2 Dimensions TO-220AB G T1 BTA24-200 BTA24-400 BTA24-600 BTA24-800 BTA24-1000 BTA24-1200 VDRM/RRM VDSM/RSM VV 200 300 400 500 600 700 800 900 1000 1200 1100 1300 ABSOLUTE MAXIMUM RATINGS Symbol Parameter IT(RMS) RMS on-state current (full sine wave) ITSM Non repetitive surge peak on-state current (full cycle, Tj initial = 25°C) I²t I²t Value for fusing dI/dt Critical rate of rise of on-state current IG = 2 x I GT , tr <_ 100 ns VDSM/V RSM Non repetitive surge peak off-state voltage TO-220AB Tc = 100°C F = 60 Hz F = 50 Hz t = 16.
